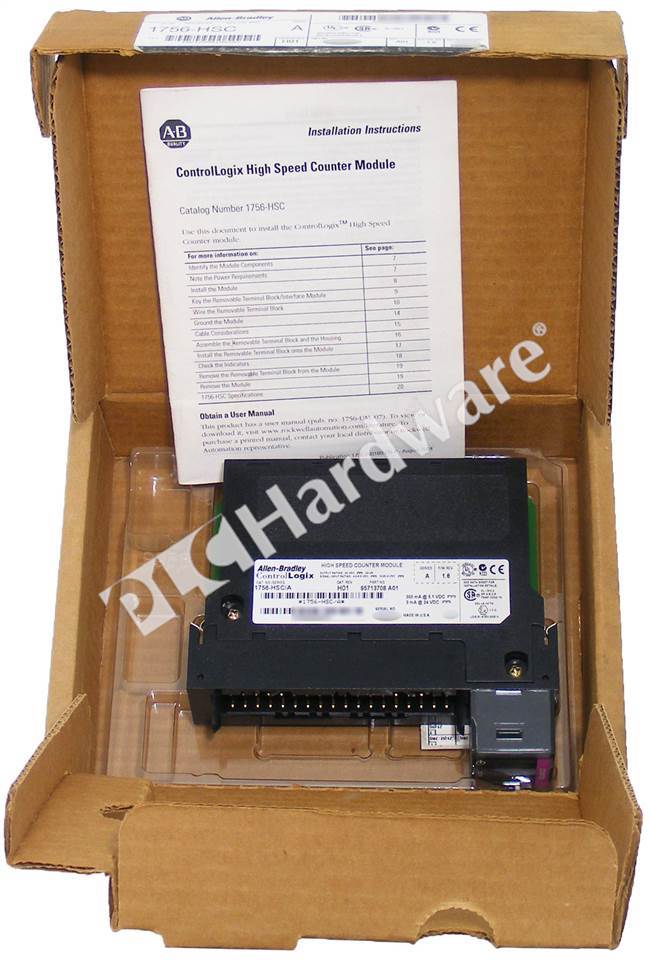

OverviewAllen-Bradley 1756-HSC ControlLogix High Speed Counter, Series A
Mfr. Part Number:

1756-HSC/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser A
Full Description: Allen Bradley 1756-HSC ControlLogix High Speed Counter Module, 2 Channel, 4 Output (36 Pin), Series A
UPC / GTIN: 10612598186287
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 3 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $1,140.00
Your Price: $769.00
Quantity:


1756-HSC/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-HSC/A RA NSS Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser A $1,140.00 $790.00 -31% 2 buyit
1756-HSC/A RA UPP Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser A $1,140.00 $242.00 -79% 20 buyit
1756-HSC/B RA NFS Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser B $1,140.00 $633.00 -44% 3 buyit
1756-HSC/B RA NSO Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser B $1,140.00 $606.00 -47% 3 buyit
1756-HSC/B RA NSS Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser B $1,140.00 $567.00 -50% 2 buyit
1756-HSC/B RA UPP Allen-Bradley 1756-HSC ControlLogix High Speed Counter Module 2-Ch, 4-Out, Ser B $1,140.00 $455.00 -60% 3 buyit
Specs & Technical Data
Specifications: Allen Bradley 1756-HSC ControlLogix High Speed Counter Module, Mode of Operation: Counter - 1 MHz max., Rate Measurement - 500 kHz max., Encoder - 250 kHz max., Debounce filter - 70 Hz max; Number of Counters: 2; Inputs per Counter: 3 (A, B, Z for Gate/Reset); Counter Range: 0…16, 777, 214; Input voltage range: 5V operation: 4.5-5.5V DC, 12/24V operation: 10-31.2V DC; Number of Outputs: 4 (2 per common); Current draw at 5.1V: 300 mA; Current draw at 24V: 3 mA; Power dissipation, max: 5.6 W @ 60°C.
Miscellaneous: Allen Bradley 1756-HSC performs high-speed counting for industrial applications. The 1756-HSC High-speed Counter module counts incoming pulses from pulse generators, counters, limit switches, and other devices, and can either return a count to the controller or activate on-board outputs for a specific action depending on application. The 1756-HSC module provides four high-speed, output-switching, ON-OFF windows. The 1756HSC module uses pulses for counting and frequency. Required RTB: 1756-TBCH, 1756-TBS6H.
