Rockwell Automation > PLC & HMI > Controllers > ControlLogix > 1756-L63/B

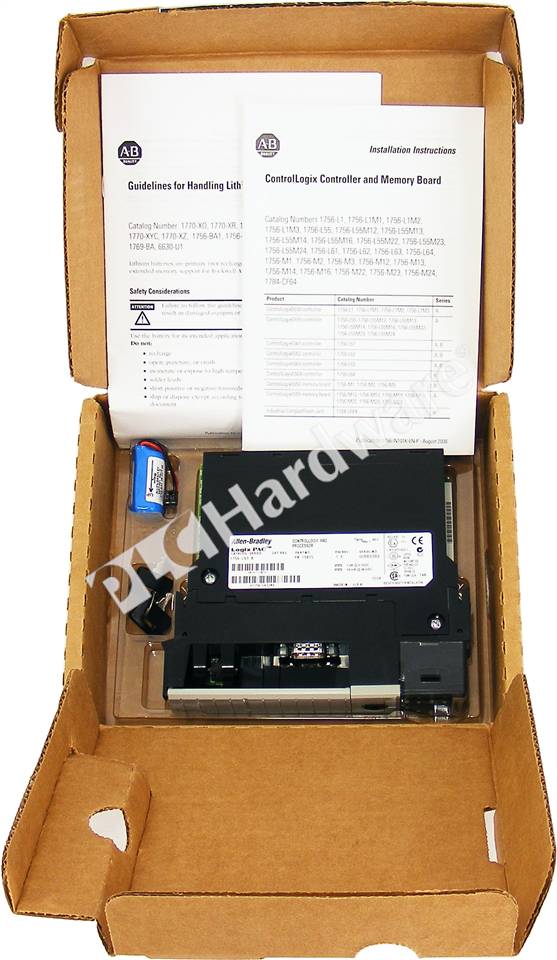

OverviewAllen-Bradley 1756-L63 ControlLogix Logix5563 Processor, Ser. B
Mfr. Part Number:

1756-L63/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor, 8MB Memory, Series B
Full Description: Allen-Bradley 1756-L63 ControlLogix Logix5563 Controller with 8 Mbyte Memory with (1) RS-232 Serial Port, 32 Tasks, 100 Programs/Task, Series B
UPC / GTIN: 10612598073433
Status: Current Product
Inventory & Prices
Condition:

NSO (New Surplus Open)

Warranty: One Year Replacement Warranty
Availability:
2 in stock 0 available for pre-order
Shipping Date:
Same working day, by 6 pm ET  -
Retail Price: $14,600.00
Your Price: $1,186.00
Quantity:


1756-L63/B
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-L63/A RA UPP Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor, 8MB Memory, Series A $14,600.00 $384.00 -97% 3 buyit
1756-L63/B RA NSS Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor, 8MB Memory, Series B $14,600.00 $2,394.00 -84% 1 buyit
1756-L63/B RA UPP Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor, 8MB Memory, Series B $14,600.00 $456.00 -97% 11 buyit
1756-L63S/B RA NSO Allen-Bradley 1756-L63S GuardLogix Safety Processor 8M/4M Safety Memory, Ser. B $17,100.00 $1,269.00 -93% 1 buyit
1756-L63S/B RA NSS Allen-Bradley 1756-L63S GuardLogix Safety Processor 8M/4M Safety Memory, Ser. B $17,100.00 $2,836.00 -83% 2 buyit
1756-L63S/B RA UPP Allen-Bradley 1756-L63S GuardLogix Safety Processor 8M/4M Safety Memory, Ser. B $17,100.00 $932.00 -95% 3 buyit
1756-L63XT/B RA NFO Allen-Bradley 1756-L63XT ControlLogix-XT Logix5563 Processor with 8MB Memory, B $20,500.00 $1,935.00 -91% 3 buyit
Specs & Technical Data
Specifications: Controller tasks: 32 tasks, 100 programs/task, Event tasks: all event triggers; Communication Ports: One RS-232 serial port; Available User Memory: 8196 KB; I/O Memory: 478 KB; Optional Nonvolatile Memory: 64MB CompactFlash (1784-CF64), 128MB (1784-CF128); Digital I/O, max: 128,000; Analog I/O, max: 4,000; Total I/O, max: 128,000; Current draw: 1200mA @ 5V DC, 14 mA @ 24V DC; Power dissipation: 3.5 W.
Miscellaneous: Allen Bradley 1756-L63 Logix5563 Controller can be inserted into any slot of a chassis. Multiple controllers can be installed in the same chassis to communicate with each other across the backplane but operate independently. 1756-L63 Controllers can communicate across RS-232-C (DF1/DH-485 protocol), DeviceNet, DH+, ControlNet, and EtherNet/IP networks. To provide communication for a 1756L63 processor, an appropriate communication interface module must be installed in the chassis.
