Name: MPL-B430P-MJ24AA/A
Brand: Allen-Bradley
SKU: MPLB430PMJ24AAA
Price: 1490.00 USD
Availability: OutOfStock

Rockwell Automation > Motion > Rotary Motor & Actuator > MP Series PM Servo Motors > MPL-B430P-MJ24AA/A

Overview

Allen-Bradley MPL-B430P-MJ24AA Servo Motor, 480VAC 5000RPM Ser A

Mfr. Part Number:	MPL-B430P-MJ24AA/A

Manufacturer:	Allen-Bradley / Rockwell Automation

Description:	Allen-Bradley MPL-B430P-MJ24AA Servo Motor, 480VAC, 5000 RPM, 2.2 kW, 6.55 NM, A

Full Description:	Allen-Bradley MPL-B430P-MJ24AA MP-Series Low Inertia Small Frame Brushless Servo Motor, 460V AC Voltage Rating, 115 mm Frame Size, 3-inch Magnet Stack, 5000 RPM Rated Speed, 2.2 kW Output, Continuous Stall Torque, Nm (lb-in.): 6.55 (58.0); Peak Stall Torque, Nm (lb-in.): 19.8 (175.0); Continuous Stall Current, Amp (0-peak): 9.2; Peak Stall Current, Amp (0-peak): 32.0; Multi-turn High Resolution Encoder, Shaft Key/No Shaft Seal, Connectors: Circular Bayonet, Facing Shaft, 24V DC Brake, Mounting Flange: IEC Metric, Standard Protection, 7.3 kg, Series A

Status:	Discontinued by manufacturer

Inventory & Prices

PLCH is Not Authorized Distributor of this product

Condition:

SSP (Surplus Sealed Pre-owned)

Warranty:

One Year PLCH Warranty.

Manufacturer's Warranty & Support DO NOT apply.

Availability:

0 in stock

0 available for pre-order

Shipping Date:

Estimated Value:

Your Price:

$1,490.00

Quantity:


Disclaimer

PLC Hardware (PLCH) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens or any other Manufacturers. PLCH is NOT Authorized Dealer of this product. The product may be of older version, date codes or design than that available from authorized dealers. As PLCH is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. PLCH sells pre-owned SURPLUS and USED equipment ONLY and DOES NOT sell SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining a proper license from the manufacturer. PLCH makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. PLCH also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from Original Manufacturer, its distributors, or any other source. PLCH also makes no representations as to your right to install any such software or firmware on the product. PLCH will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that PLCH DOES NOT provide any software, firmware, operating system or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance and upgrades are subject to applicable manufacturer's Licensing Agreement or similar document.

Similar Parts	Mfr	Cond	Description	Est Val	Price	Stock	Qty

MPL-B430P-MJ24AA/A	RA	UPP	Allen-Bradley MPL-B430P-MJ24AA Servo Motor, 480VAC, 5000 RPM, 2.2 kW, 6.55 NM, A		$6,912.00	3 days	1

Specs & Technical Data

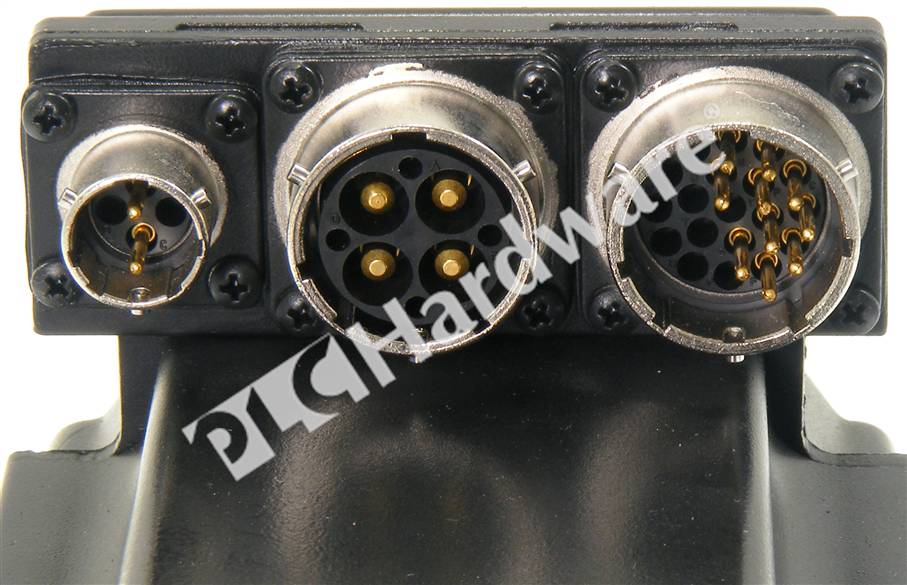

Specifications:	Allen-Bradley MPL-B430P-MJ24AA MP-Series Low Inertia Servo Motor, Voltage Rating: 460VAC; Rated Output: 2.2 kW; Frame Size: 115 mm; Rated Speed: 5000 RPM; Magnet Stack Length: 3.0 inch; Continuous Stall Torque, Nm (lb-in.): 6.55 (58.0); Peak Stall Torque, Nm (lb-in.): 19.8 (175.0); Continuous Stall Current, Amp (0-peak): 9.2; Peak Stall Current, Amp (0-peak): 32.0; Multi-turn High Resolution Encoder; Shaft Key/No Shaft Seal; Connectors: Circular Bayonet, Facing Shaft, 24V DC Brake; Weight: 7.3 kg (16 lb).

Miscellaneous:	Allen-Bradley MPL-B430P-MJ24AA MP-Series™ Low Inertia (MPL) Servo Motors are high-output brushless motors which use innovative design characteristics to reduce motor size while delivering significantly higher torque. These MPL-B430P-MJ24AA compact brushless servo motors are designed to meet the demanding requirements of high performance motion systems. The MP-Series of servo motors is typically used with the Allen-Bradley Kinetix 2000, Kinetix 6000, Kinetix 7000 and Ultra™ 3000 servo drive families.
