| Overview | Allen-Bradley 1756-A10K 10-Slot ControlLogix Chassis, Coated |
|
|
| Mfr. Part Number: |
1756-A10K |
|
|
| Manufacturer: |
Allen-Bradley / Rockwell Automation |
|
|
| Description: |
Allen-Bradley 1756-A10K 10 Slot ControlLogix Chassis, Conformally Coated |
|
|
| Full Description: |

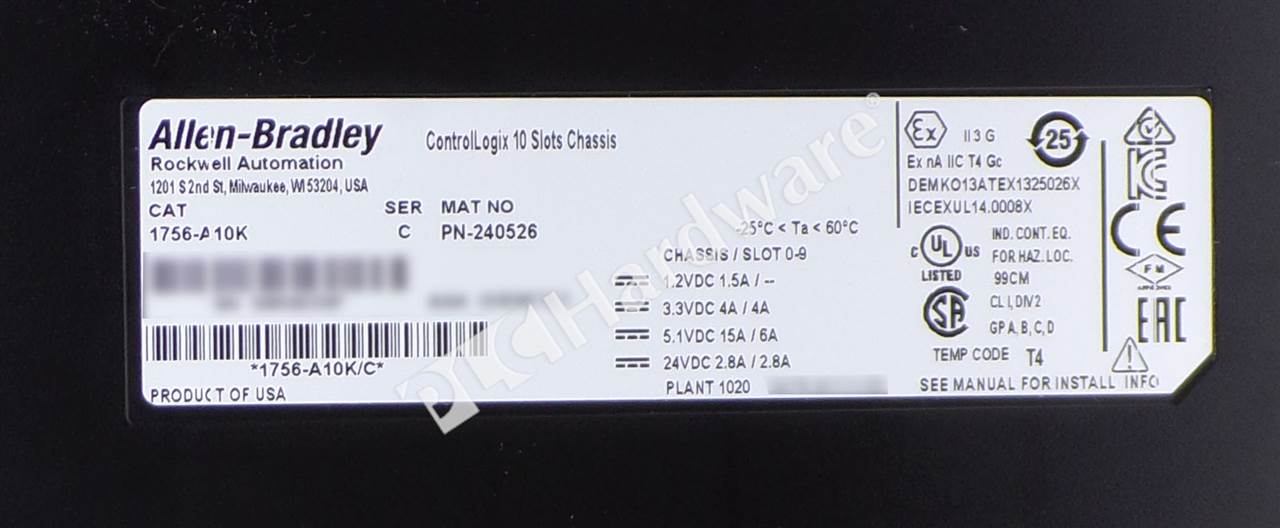

Allen Bradley 1756-A10K 10 Slot ControlLogix Chassis. The 1756-A10 chassis backplane provides a high-speed communication path between modules and distributes power to each of the modules within the chassis. Any ControlLogix module can be placed into any slot. Slot filler modules (1756-N2) are required to fill empty slots. The 1756-A10 ControlLogix chassis are designed for horizontal mounting only. Number of Slots: 10; Backplane current, chassis/slot max @ 1.2V DC: 1.5 A/1.5 A; Backplane current, chassis/slot max @ 3.3V DC: 4 A/4 A; Backplane current, chassis/slot max @ 5.1V DC: 15 A/6 A; Backplane current, chassis/slot max @ 24V DC: 2.8 A/2.8 A; Power dissipation: 6.1 BTU/hr; Power consumption: 1.8 W. Dimensions (WxHxD): 483 x 169 x 145 mm (19.0 x 6.65 x 5.71 in.); Cabinet size (WxHxD), min: 762x 507 x 203 mm (30 x 20 x 8 in.); Weight, approx.: 1.45 kg (3.2 lb), Conformally Coated |
|
|
| UPC / GTIN: |
00885630569536 |
|
|
| Status: |
Current Product |
| Inventory & Prices | PLCH is Not Authorized Distributor of this product |
|
|
|
|
| Warranty: |
Manufacturer's Warranty & Support DO NOT apply. |
|
|
|
|
| Availability: |
|
0 in stock |
|
0 available for pre-order |
|
|
|
|
|
| Shipping Date: |
|
|
|
|
|
| Estimated Value: |
|
|
|
|
|
| Your Price: |
Not Available |
|
|
