Name: 1734-OB8K/C
Brand: Allen-Bradley
SKU: 1734OB8KC
Price: 135.00 USD
Availability: InStock

Rockwell Automation > PLC & HMI > I/O Products > Point & PointMax > 1734-OB8K/C

Overview

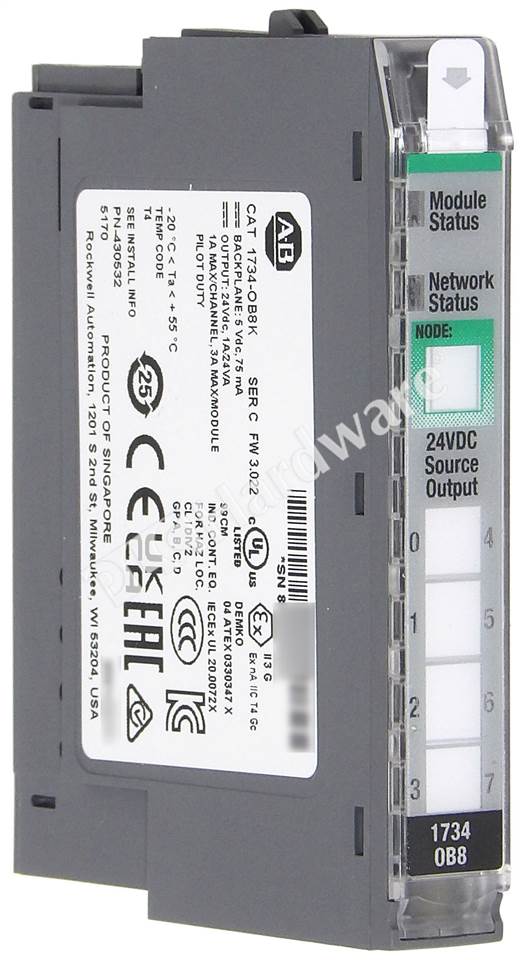

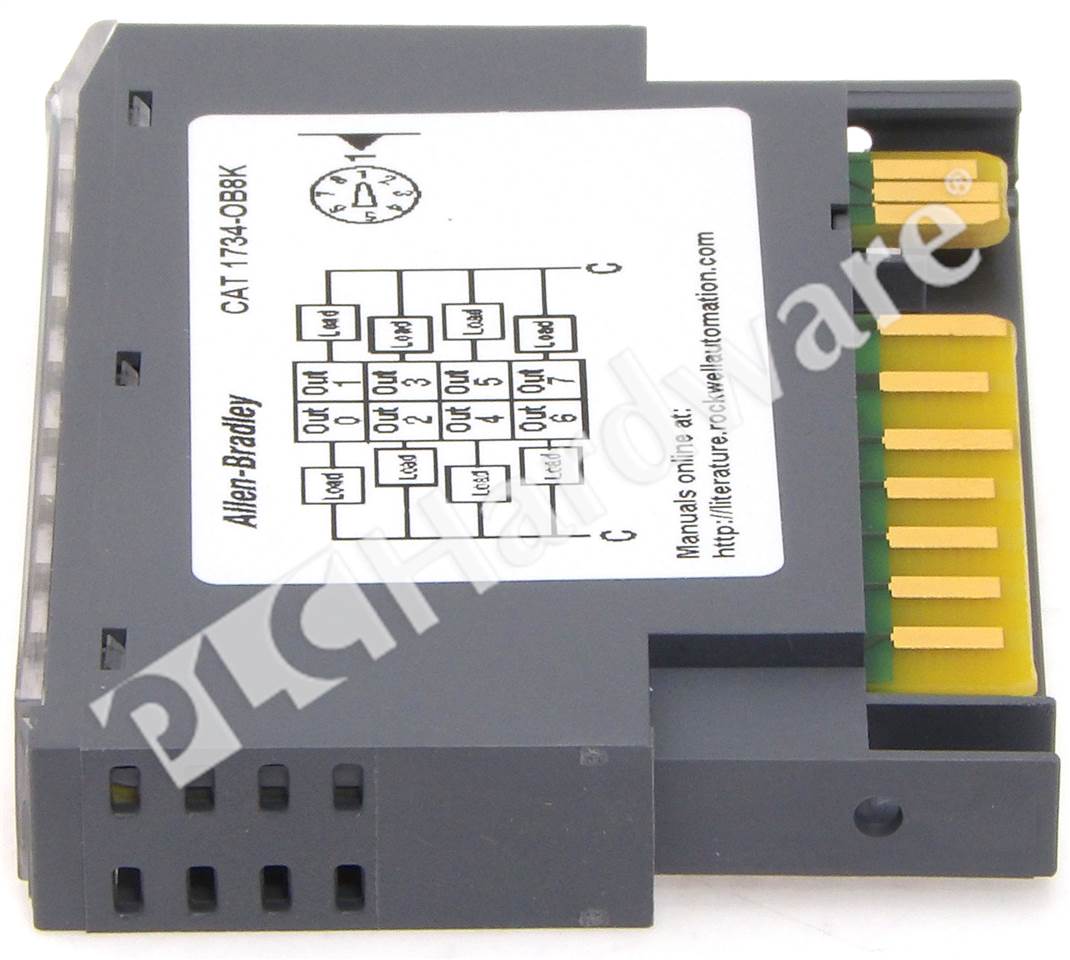

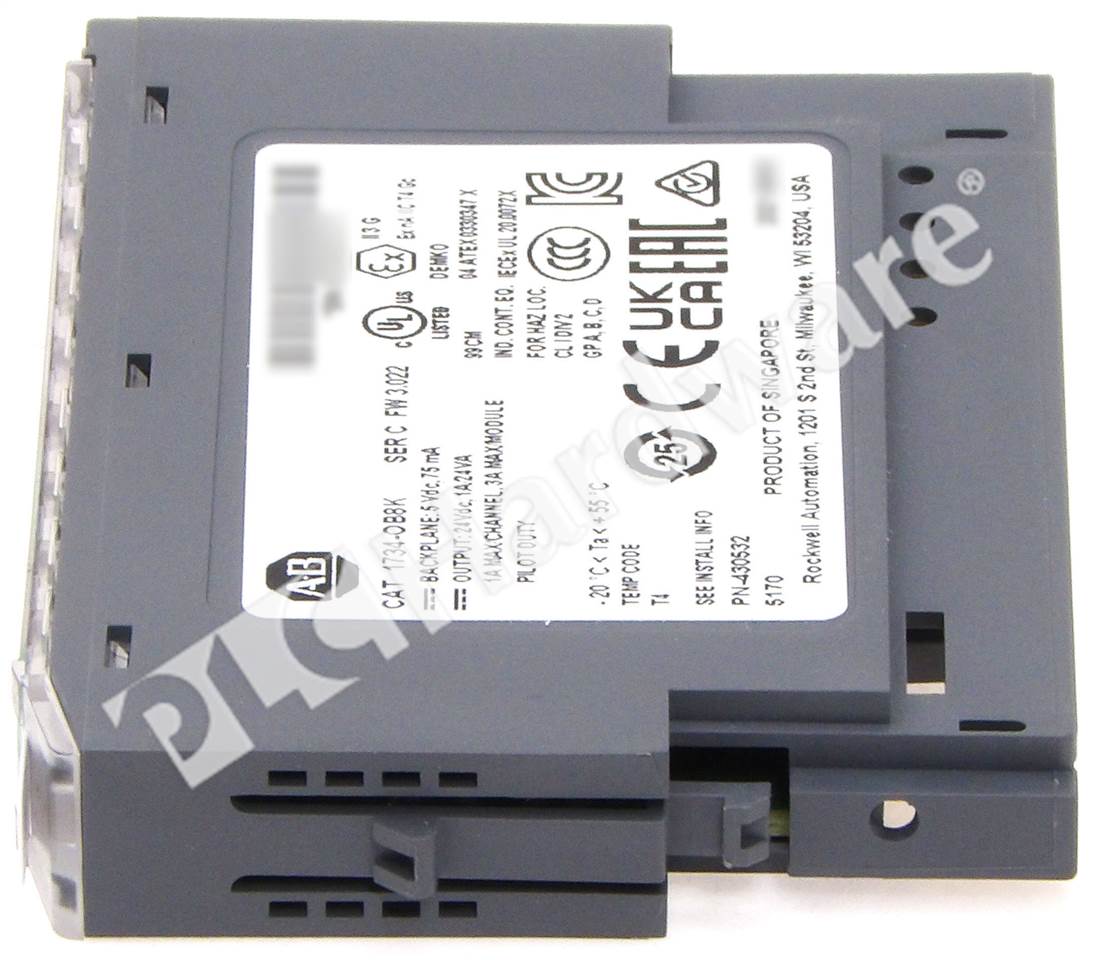

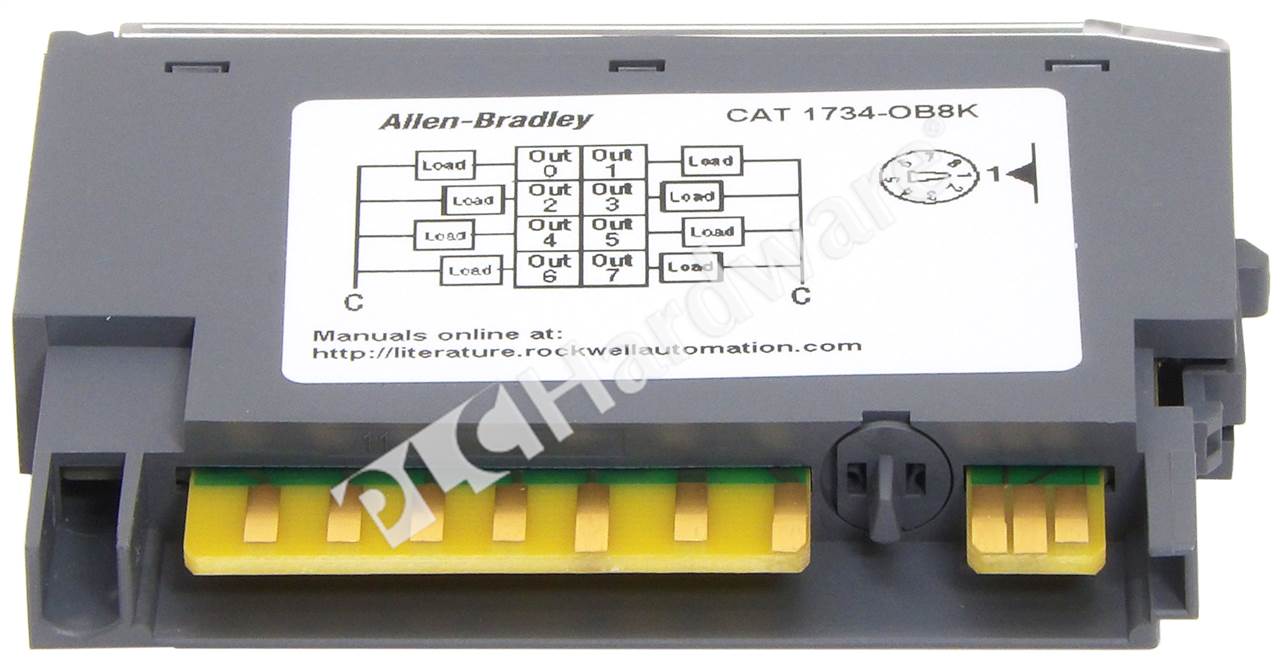

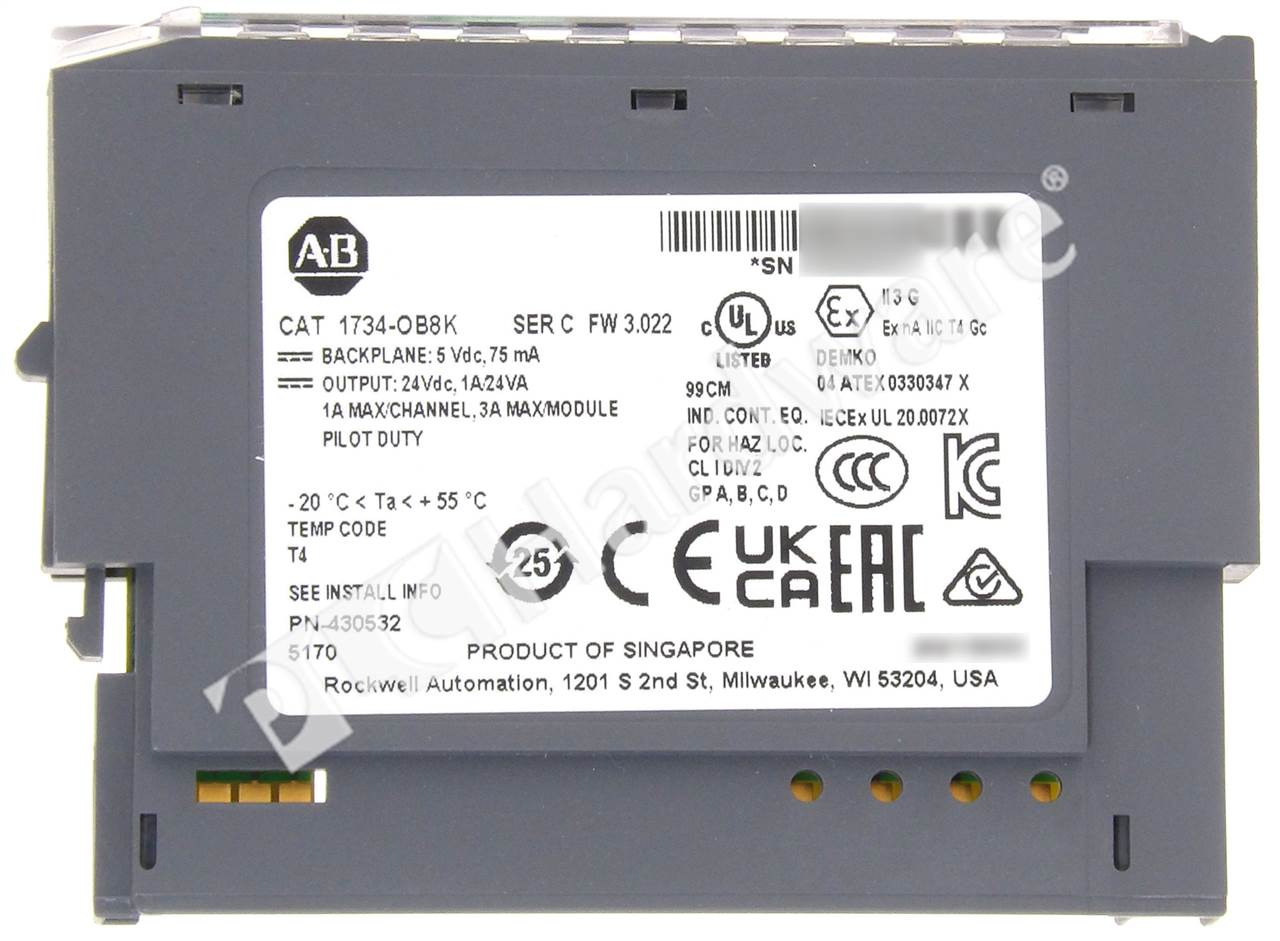

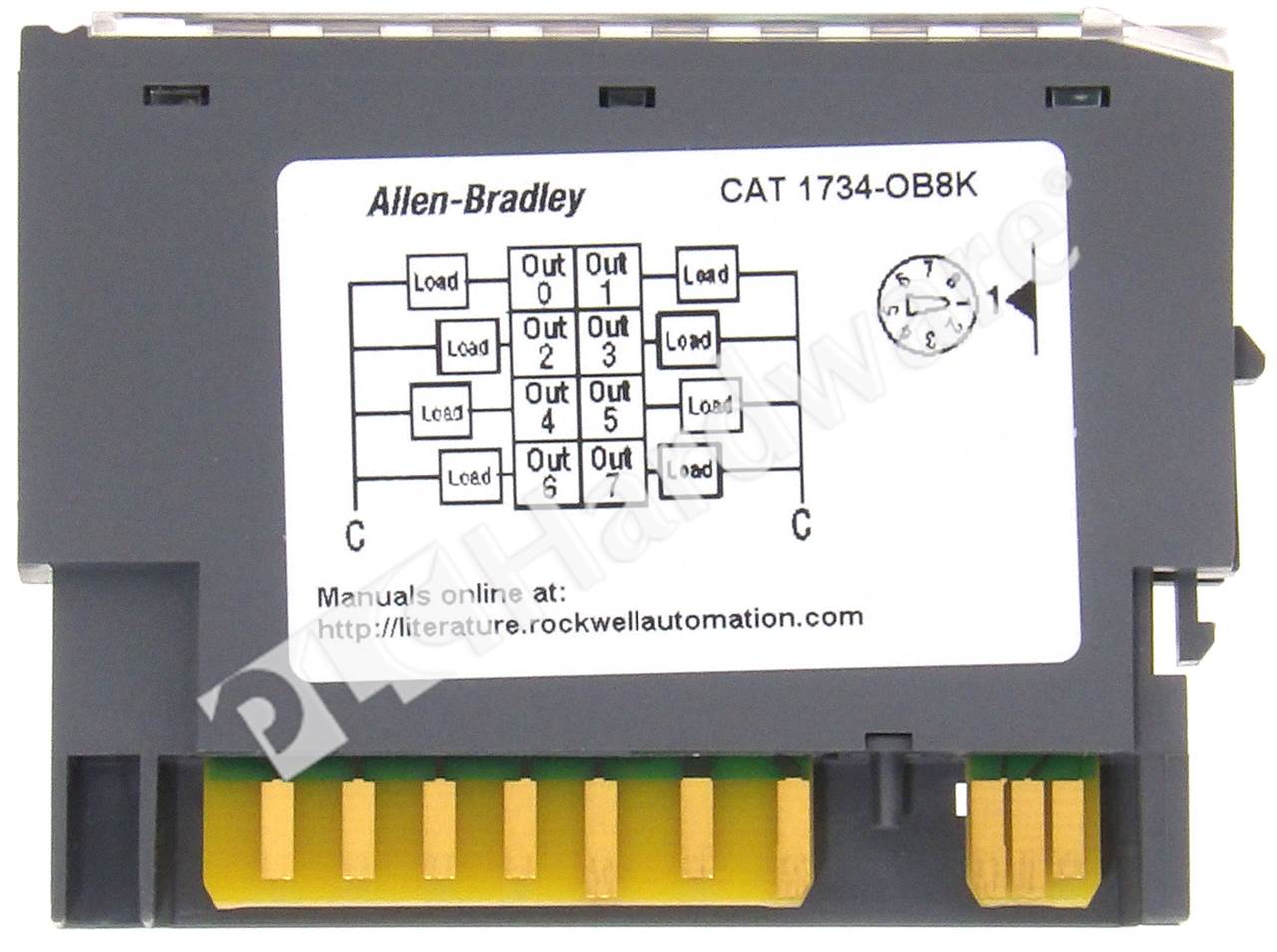

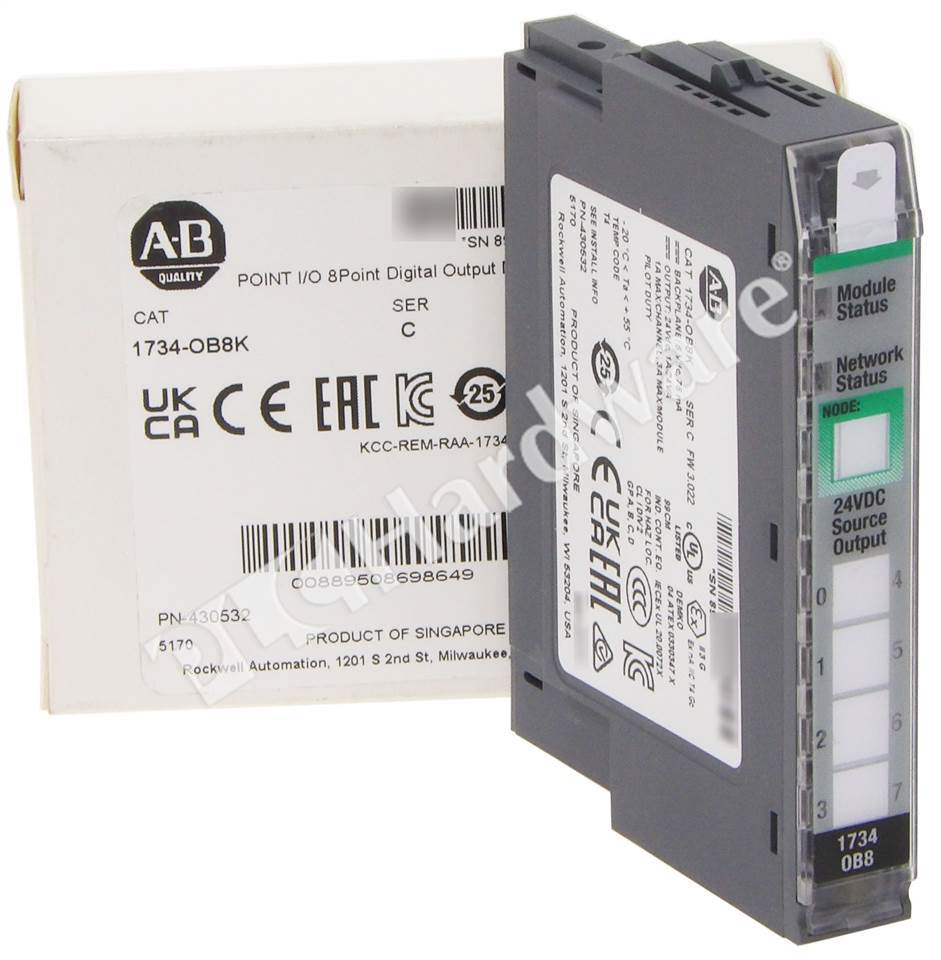

Allen-Bradley 1734-OB8K POINT I/O 24V DC 8-Ch Source Output, C

Mfr. Part Number:	1734-OB8K/C

Manufacturer:	Allen-Bradley / Rockwell Automation

Description:	Allen-Bradley 1734-OB8K POINT I/O 24V DC 8-Channel Source Output Module, Ser. C

Full Description:	Allen Bradley 1734-OB8K POINT I/O 24V DC 8-Channel Source Output Module, Non-isolated; Number of Outputs: 8 (1 group of 8) non-isolated, sourcing; ON-State Voltage Range: 10V DC min, 24V DC nom, 28.8V DC max; ON-State Voltage Drop: 0.2V DC max; ON-State Current: 1.0mA min per channel; OFF-State Voltage: 28.8V DC max; OFF-State Leakage: 0.5mA max; Output Current Rating: 1.0A per output, not to exceed, 3.0A maximum per module; Pointbus Current: 75mA max @ 5V DC; Power Dissipation: 2.0W @ 28.8V DC; Supply Voltage: 24V DC; Voltage Range: 10-28.8V DC; Supply Current: 32mA, Conformally Coated, Series C

UPC / GTIN:	00889508698649

Status:	Current Product

Inventory & Prices

PLCH is Not Authorized Distributor of this product

Condition:

SOP (Surplus Open Pre-owned)

Warranty:

One Year PLCH Warranty.

Manufacturer's Warranty & Support DO NOT apply.

Availability:

6 in stock

Shipping Date:

Same working day, by 6 pm ET

Estimated Value:

Your Price:

$135.00
