OverviewAllen-Bradley 1756-IF16 ControlLogix Analog Input Module, Ser. A
Mfr. Part Number:

1756-IF16/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1756-IF16 ControlLogix 16 Current/Voltage Analog Input, Series A
Full Description: Allen-Bradley 1756-IF16 ControlLogix Analog Input Module, Current/Voltage, 16-Point (36 Pin), Series A
UPC / GTIN: 10612598171788
Status: Current Product
Inventory & Prices
Condition:

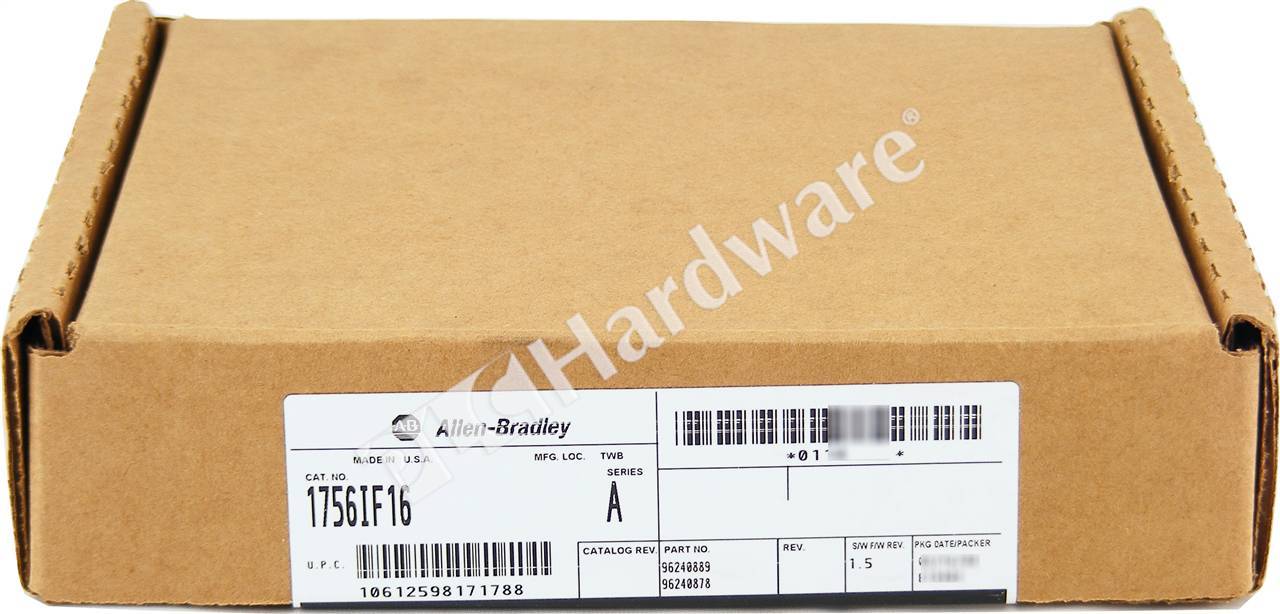

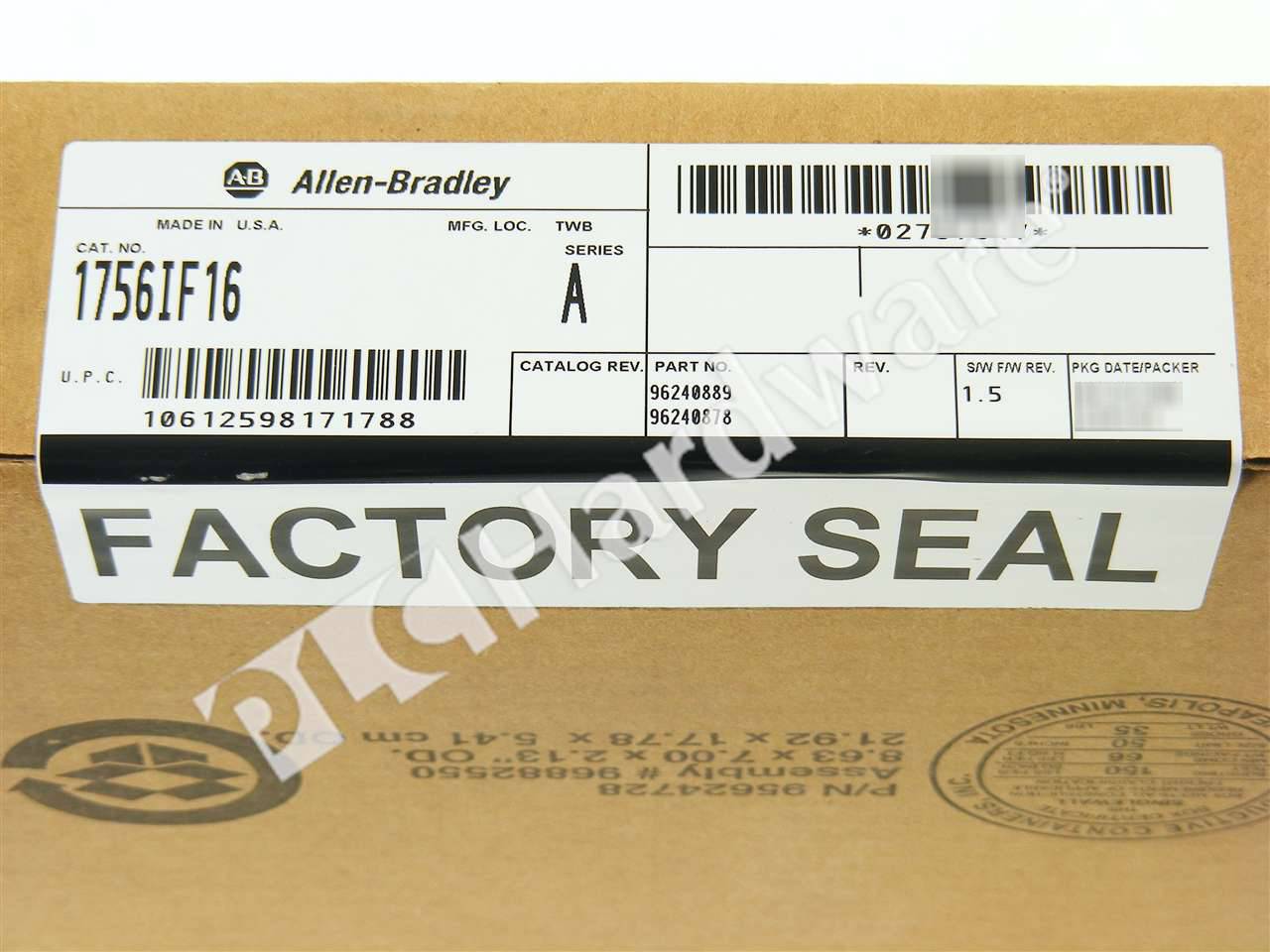

NSS (New Surplus Sealed)

Warranty: One Year Replacement Warranty
Availability:
0 in stock 7 available for pre-order
Shipping Date:
 - Ships within 3 working days
Retail Price: $1,680.00
Your Price: $1,038.00
Quantity:

1756-IF16/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-IF16/A RA NFS Allen-Bradley 1756-IF16 ControlLogix 16 Current/Voltage Analog Input, Series A $1,680.00 $1,063.00 -37% 6 buyit
1756-IF16/A RA NSO Allen-Bradley 1756-IF16 ControlLogix 16 Current/Voltage Analog Input, Series A $1,680.00 $1,022.00 -39% 5 buyit
1756-IF16/A RA UPP Allen-Bradley 1756-IF16 ControlLogix 16 Current/Voltage Analog Input, Series A $1,680.00 $340.00 -80% 6 buyit
1756-IF16H/A RA NFS Allen-Bradley 1756-IF16H ControlLogix Analog Input Module 16-Point HART, Ser. A $2,250.00 $1,775.00 -21% 1 buyit
1756-IF16H/A RA NSO Allen-Bradley 1756-IF16H ControlLogix Analog Input Module 16-Point HART, Ser. A $2,250.00 $1,948.00 -13% 2 buyit
1756-IF16H/A RA NSS Allen-Bradley 1756-IF16H ControlLogix Analog Input Module 16-Point HART, Ser. A $2,250.00 $1,649.00 -27% 1 buyit
1756-IF16H/A RA UPP Allen-Bradley 1756-IF16H ControlLogix Analog Input Module 16-Point HART, Ser. A $2,250.00 $1,195.00 -47% 2 buyit
Specs & Technical Data
Specifications: 1756-IF16 - Number of Inputs: 16 single-ended, 8 differential, 4 high-speed differential; Input Range: +/-10.25V (15 bits plus sign bipolar), 0-10.25V (16 bits), 0-5.125V (16 bits), 0-20.5mA (16 bits); Data Format: Integer mode (Left justified, 2s complement), Floating point IEEE 32 bit. Input impedance: Voltage: >10 MΩ, Current: 249 Ω; Channel bandwidth: 15 Hz (-3 dB); Module input scan time, min: 25 ms min – floating point, 10 ms min – integer; Backplane Current: 150mA @ 5.1V dc & 65mA @ 24V dc (2.33W).
Miscellaneous: The 1756-IF16 module supports On-board data alarming, Scaling to engineering units, Real-time channel sampling, IEEE 32-bit floating point or 16-bit integer data formats. Each 1756-IF16 module mounts in a ControlLogix chassis and requires either a removable terminal block (RTB) or a 1492 interface module (IFM) to connect all field-side wiring. Required Removable Terminal Block Housing: 1756-TBCH or 1756-TBS6H.
