OverviewAllen-Bradley 1756-IT6I ControlLogix Thermocouple Input Module
Mfr. Part Number:

1756-IT6I/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen Bradley 1756-IT6I ControlLogix Isolated Thermocouple/mV Input 6-Pt, Ser. A
Full Description: Allen-Bradley 1756-IT6I ControlLogix Isolated Thermocouple/mV Input Module, 6 Points (20 Pin), Series A
UPC / GTIN: 10612598172310
Status: Current Product
Inventory & Prices
Condition:

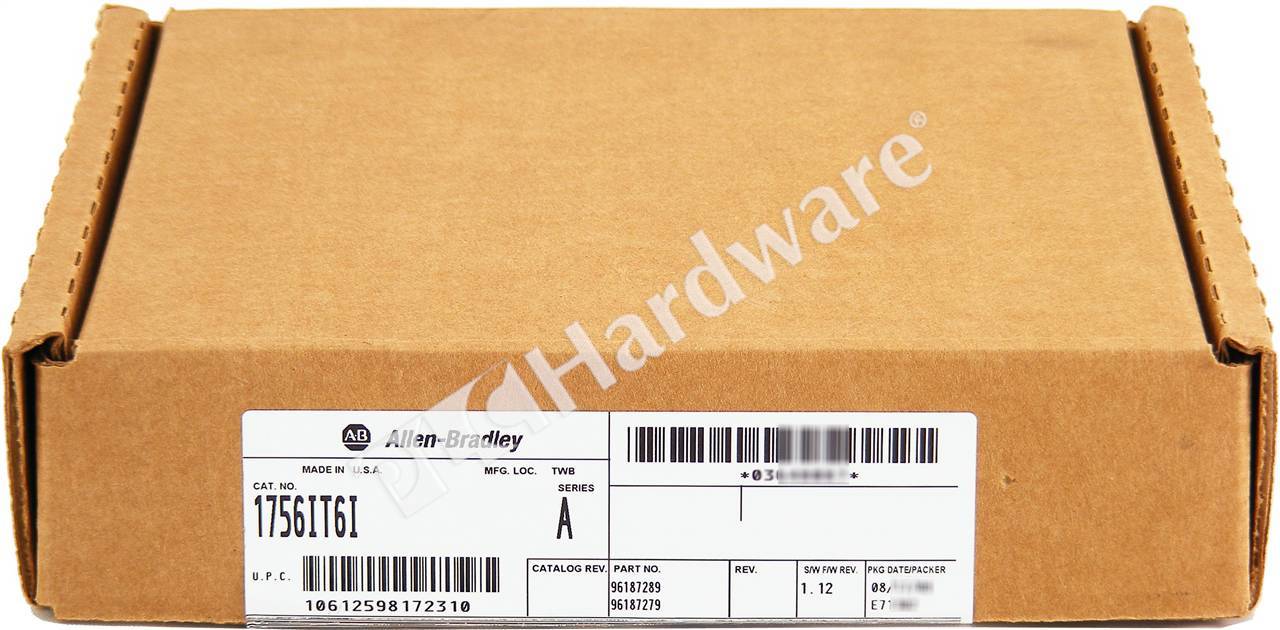

NSS (New Surplus Sealed)

Warranty: One Year PLCH Replacement Warranty
Availability:
3 available for pre-order
Shipping Date:
Ships in 3 working days
Retail Price: $2,930.00
Your Price: $941.00
Quantity:

1756-IT6I/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1756-IT6I/A RA NSO Allen Bradley 1756-IT6I ControlLogix Isolated Thermocouple/mV Input 6-Pt, Ser. A $2,930.00 $489.00 -83% 1 buyit
1756-IT6I/A RA UPP Allen Bradley 1756-IT6I ControlLogix Isolated Thermocouple/mV Input 6-Pt, Ser. A $2,930.00 $197.00 -93% 11 buyit
1756-IT6I2/A RA NSO Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple/Mv Input 6P, Ser. A $2,390.00 $907.00 -62% 1 buyit
1756-IT6I2/A RA NSP Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple/Mv Input 6P, Ser. A $2,390.00 $497.00 -79% 7 buyit
1756-IT6I2/A RA NSS Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple/Mv Input 6P, Ser. A $2,390.00 $795.00 -67% 15 buyit
1756-IT6I2/A RA UPP Allen Bradley 1756-IT6I2 ControlLogix Enhanced Thermocouple/Mv Input 6P, Ser. A $2,390.00 $421.00 -82% 2 buyit
Specs & Technical Data
Specifications: Allen Bradley 1756-IT6I ControlLogix Isolated Thermocouple/mV Input Module, Number of Inputs: 6 individually isolated thermocouple, 1 CJC; Input range: -12…78 mV, -12…30 mV; Resolution: 16 bits, -12...78 mV: 1.4 μV/bit, -12...30 mV: 0.7 μV/bit; Thermocouples: B, E, J, K, R, S, T, N, C; Current draw @ 5.1V: 250 mA; Current draw @ 24V: 125 mA; Power dissipation, max: 4.3 W; Input impedance: >10 MΩ; Scan time: 25 ms min floating point (mV), 50 ms min floating point (temperature), 10 ms min integer (mV).
Miscellaneous: Allen Bradley 1756-IT6I ControlLogix temperature sensing analog input module supports on-board data alarming, scaling to engineering units, real-time channel sampling, IEEE 32-bit floating point or 16-bit integer data formats. One CJC, part number 94238301, is shipped with the 1756-IT6I module, a replacement can be ordered as RP-9423830. The 1756IT6I requires Removable Terminal Block Housing (RTB): 1756-TBNH or 1756-TBSH.
