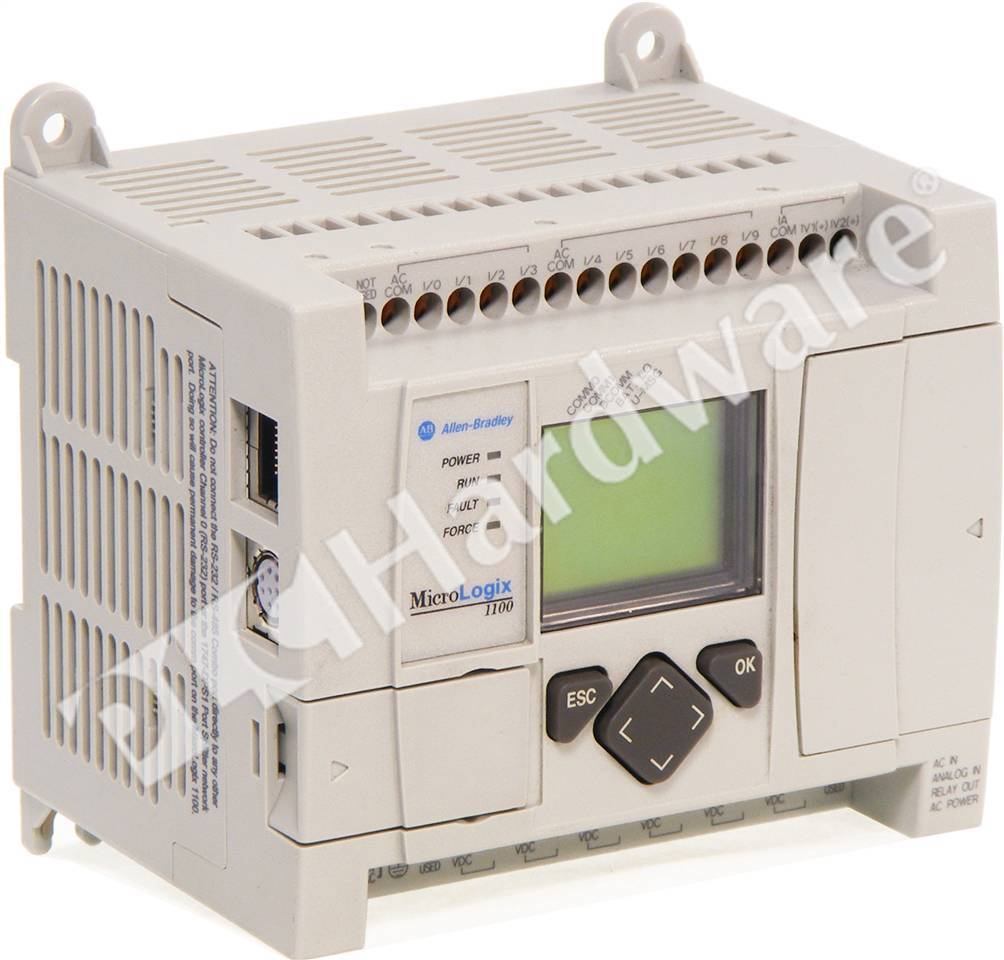

OverviewAllen-Bradley 1763-L16AWA MicroLogix 1100 Controller 16 I/O, B
Mfr. Part Number:

1763-L16AWA/B

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, 120/240VAC 16-Points Ser B
Full Description: Allen-Bradley 1763-L16AWA MicroLogix 1100 Small Logic Controller, 120/240V AC Power, (10) 120V AC Digital Inputs, (2) 0-10V Analog Voltage Inputs, (6) Relay Outputs, Series B
UPC / GTIN: 10662074023025
Status: Discontinued by manufacturer
Inventory & PricesPLCH is Not Authorized Distributor of this product
Condition:

UPP (Used in PLCH Packaging)

Warranty:
Manufacturer's Warranty & Support DO NOT apply.
Availability:
4 in stock
Shipping Date:
Same working day, by 6 pm ET
Estimated Value:
Your Price: $416.00
Quantity:

1763-L16AWA/B
Disclaimer
PLC Hardware (PLCH) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens or any other Manufacturers. PLCH is NOT Authorized Dealer of this product. The product may be of older version, date codes or design than that available from authorized dealers. As PLCH is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. PLCH sells SURPLUS and USED equipment ONLY and DOES NOT sell SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining a proper license from the manufacturer. PLCH makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. PLCH also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from Original Manufacturer, its distributors, or any other source. PLCH also makes no representations as to your right to install any such software or firmware on the product. PLCH will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that PLCH DOES NOT provide any software, firmware, operating system or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance and upgrades are subject to applicable manufacturer's Licensing Agreement or similar document.

Similar Parts Mfr Cond Description Est Val Price Disc Qty
1763-L16AWA/B RA SPP Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, 120/240VAC 16-Points Ser B $1,298.00 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1763-L16AWA MicroLogix 1100 Controller, Number of I/O: 10 Digital Inputs, 2 Analog Inputs, 6 Outputs; Input Type: 120V AC 47-63 Hz (Digital), 0-10V DC (Analog); Output Type: Individually Isolated Relay; Output Operating Voltage Range: 5-264V AC, 5-125V DC; Input Voltage Range: 79-132V AC; Inrush Current (max.) at 120V AC: 250 mA; Analog Input Voltage Impedance: 210 kOhm; Input Resolution: 10-bit; Overall Accuracy: ±0.5% full scale at -20…65 °C.
Miscellaneous: Allen-Bradley 1763-L16AWA Controller provides 8K-word memory for a maximum program of 4K words and maximum data of 4K words with 100% data retention. An optional memory module can be used with 1763-L16AWA controller to provide program and data backup with program upload and download capability. The optional real-time clock can be used with this 1763-L16AWA controller to enable time scheduling of control activities. The 1763L16AWA Controller can be mounted either on a panel or on a DIN-rail.
