Siemens > Drives & Motors > Converters: Low-voltage > SIMODRIVE Converter system > 6SN1118-0DK21-0AA1

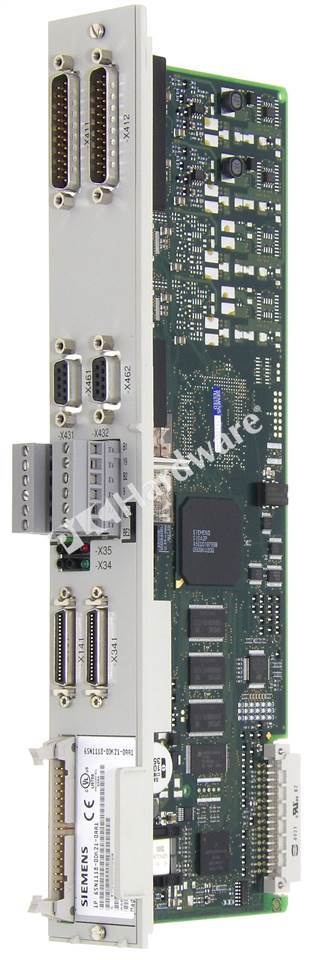

OverviewSiemens 6SN1118-0DK21-0AA1 SIMODRIVE 611 Digital Control Board
Mfr. Part Number:


Manufacturer: Siemens
Description: Siemens 6SN1118-0DK21-0AA1 SIMODRIVE 611 Digital Control Board, 2-Axis, Setpoint
Full Description: Siemens 6SN1 118-0DK21-0AA1 SIMODRIVE 611 Digital Control Loop Block, High Performance, Closed-loop Control Plug-in Unit with Digital Setpoint Interface for FD or MSD control, 2-Axes for encoders with sin/cos 1 Vpp, NC Software required from 06.04.09
UPC / GTIN: 4025515013914
Status: Current Product
Inventory & Prices

UPP (Used in a PLCH Packaging)

Warranty: One Year Replacement Warranty
0 in stock 1 available for pre-order
Shipping Date:
 - Ships within 5 working days
Retail Price: $4,690.00
Your Price: $2,526.00
Specs & Technical Data
Specifications: Siemens 6SN1118-0DK21-0AA1 SIMODRIVE 611 Control Board High Performance, Interface: Digital setpoint interface for FD and MSD: Number of Axes: 2; Output Frequency, Max: 1400 Hz.
Miscellaneous: Digital control units in 1–axis and 2–axis versions (for 1PH, 2–axis control is only possible with High Performance) are available to operate motors FT6/1FK/1FN1/1FN3/1FE1/1PH/1PM/1FM6/2SP1. During the initialization phase (power on or reset), the drive software is downloaded from the SINUMERIK 840D to the control board via the drive bus.
