Name: PA-MC-STM-1MM=
Brand: Cisco
SKU: PAMCSTM1MM
Price: 3486.00 USD
Availability: OutOfStock

Cisco > Routers > 7200 Router > 7200 Port Adapters > PA-MC-STM-1MM=

Overview

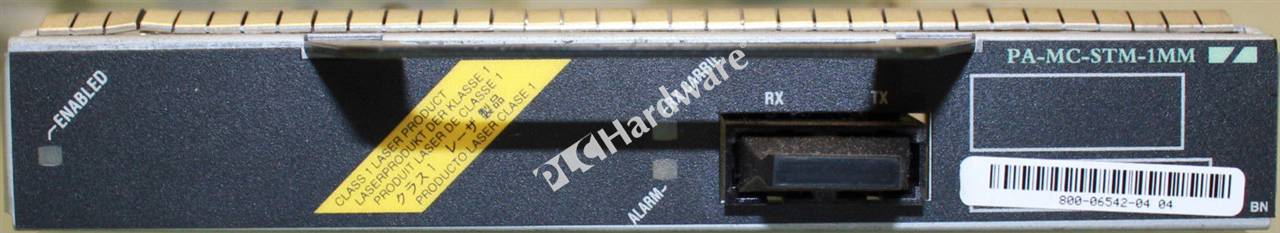

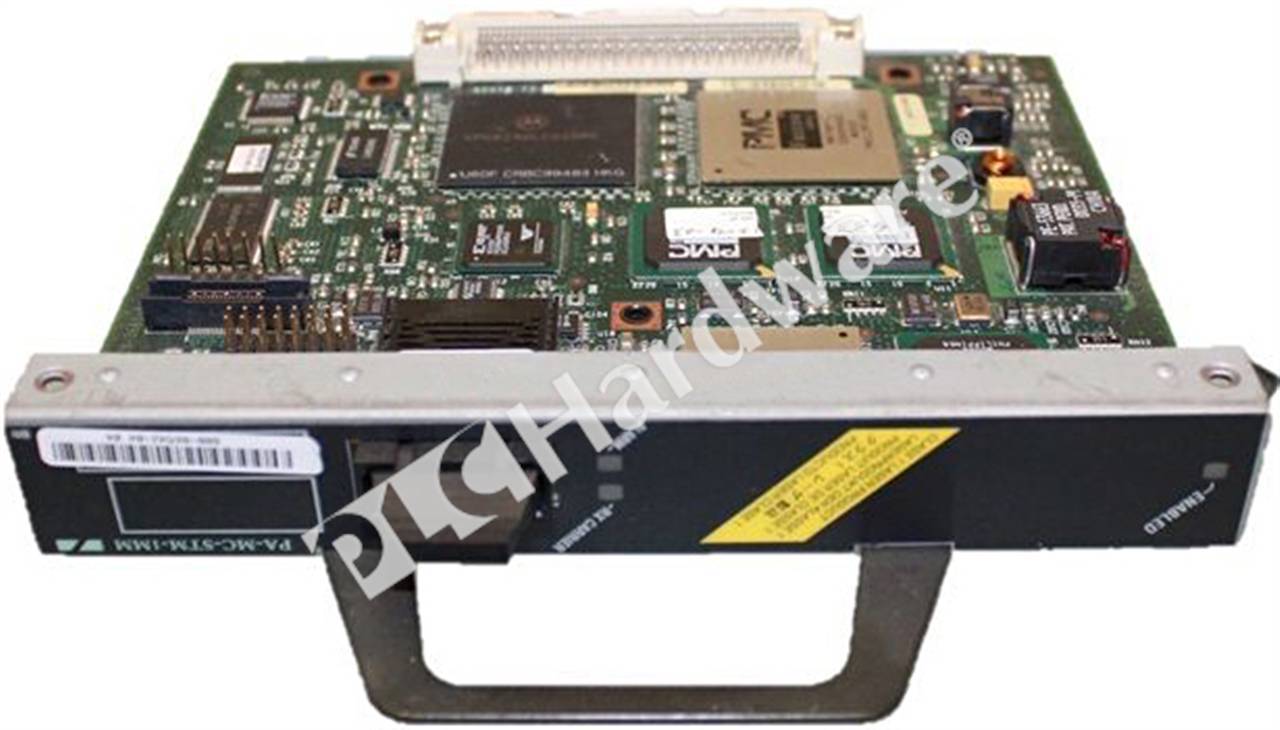

Cisco PA-MC-STM-1MM 1 Port Multichannel STM-1 MM Port Adapter

Mfr. Part Number:	PA-MC-STM-1MM=

Manufacturer:	Cisco

Description:	Cisco PA-MC-STM-1MM 1 Port Multichannel STM-1 multimode Port Adapter

Full Description:	Cisco PA-MC-STM-1MM 1 Port Multichannel STM-1 multimode Port Adapter for Cisco 7600, FlexWAN module, and 7500 and 7200 Series routers

Status:	Discontinued by manufacturer

Inventory & Prices

PLCH is Not Authorized Distributor of this product

Condition:

UPP (Used PLCH Packaging)

Warranty:

One Year PLCH Warranty.

Manufacturer's Warranty & Support DO NOT apply.

Availability:

0 in stock

0 available for pre-order

Shipping Date:

Estimated Value:

$45,000.00

Your Price:

$3,486.00

Quantity:


Disclaimer

PLC Hardware (PLCH) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens or any other Manufacturers. PLCH is NOT Authorized Dealer of this product. The product may be of older version, date codes or design than that available from authorized dealers. As PLCH is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. PLCH sells pre-owned SURPLUS and USED equipment ONLY and DOES NOT sell SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining a proper license from the manufacturer. PLCH makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. PLCH also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from Original Manufacturer, its distributors, or any other source. PLCH also makes no representations as to your right to install any such software or firmware on the product. PLCH will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that PLCH DOES NOT provide any software, firmware, operating system or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance and upgrades are subject to applicable manufacturer's Licensing Agreement or similar document.

Specs & Technical Data

Specifications:	One channelized STM-1 port; Channelized E1, fractional E1, and full-rate E1 supported; Up to 256 usable channels can be allocated among the 63 E1 ports; Internal or network clocking selectable on each E1; 64 kbps DS0 time slots; Line and payload loopback capabilities-local and network at the E1 and STM-1 level; Full bit-error-rate testing capabilities on any E1; Programmable pseudo-random pattern up to 32 bits in length including 2 11-1; 2 15-1; and 2 20-1, 0153, and QRSS; 32-bit error count and bit-count.

Miscellaneous:	Cisco PA-MC-STM-1MM is a Single-wide, Multichannel STM-1 Port Adapter designed for SDH network connections on the Cisco 7600, 7500, and 7200 Series routers as well as the Cisco Catalyst 6500. The PA-MC-STM-1MM Port Adapter enables users to channelize an STM-1 down to 64 kbps using a variety of encapsulations on as many as 256 logical channels. The PA-MC-STM-1 enables service providers to use a single fiber-optic circuit to provision 63 E1s-E1s that normally require 63 separate copper pairs.
