Name: 1734-IB8K/D
Brand: Allen-Bradley
SKU: 1734IB8KD
Price: 135.00 USD
Availability: InStock

Rockwell Automation > PLC & HMI > I/O Products > Point & PointMax > 1734-IB8K/D

Overview

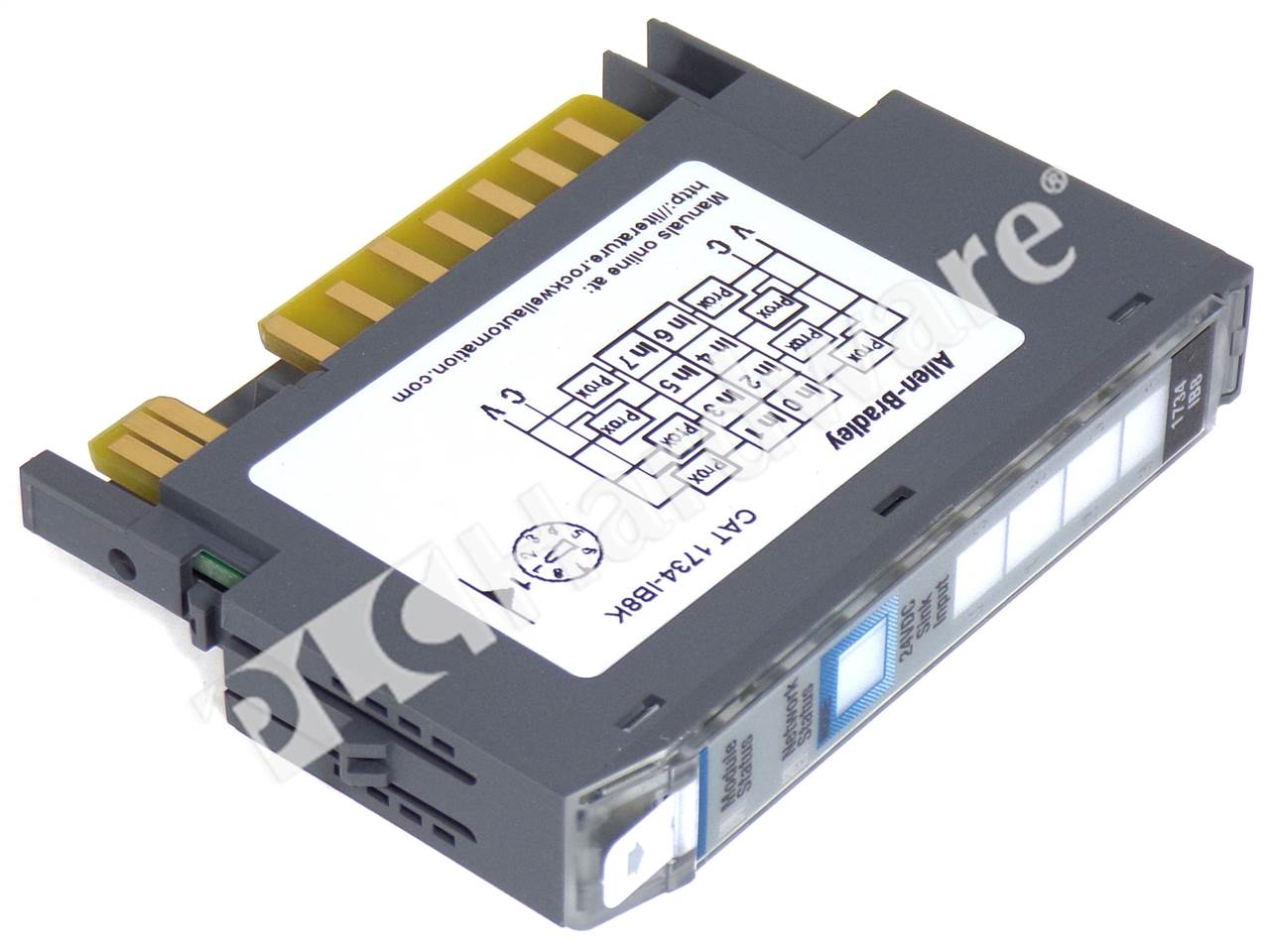

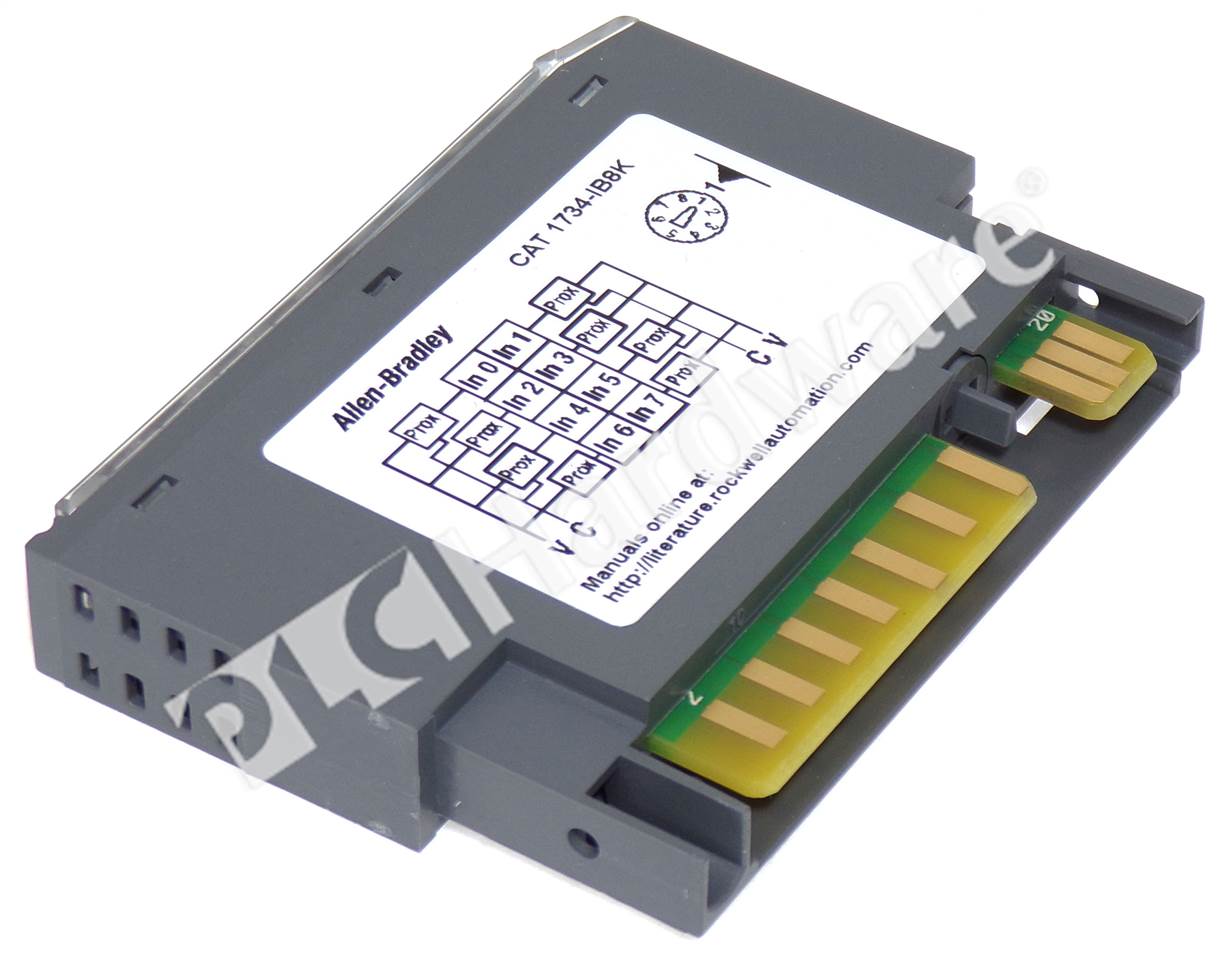

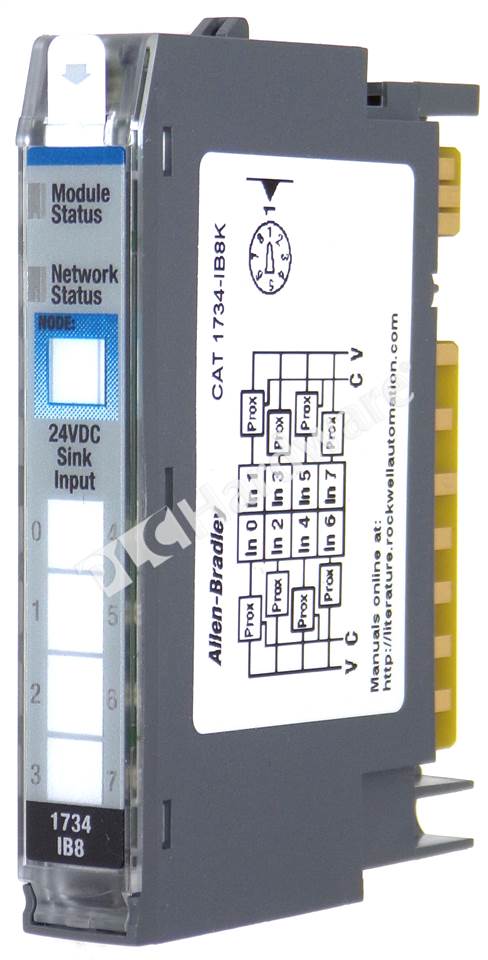

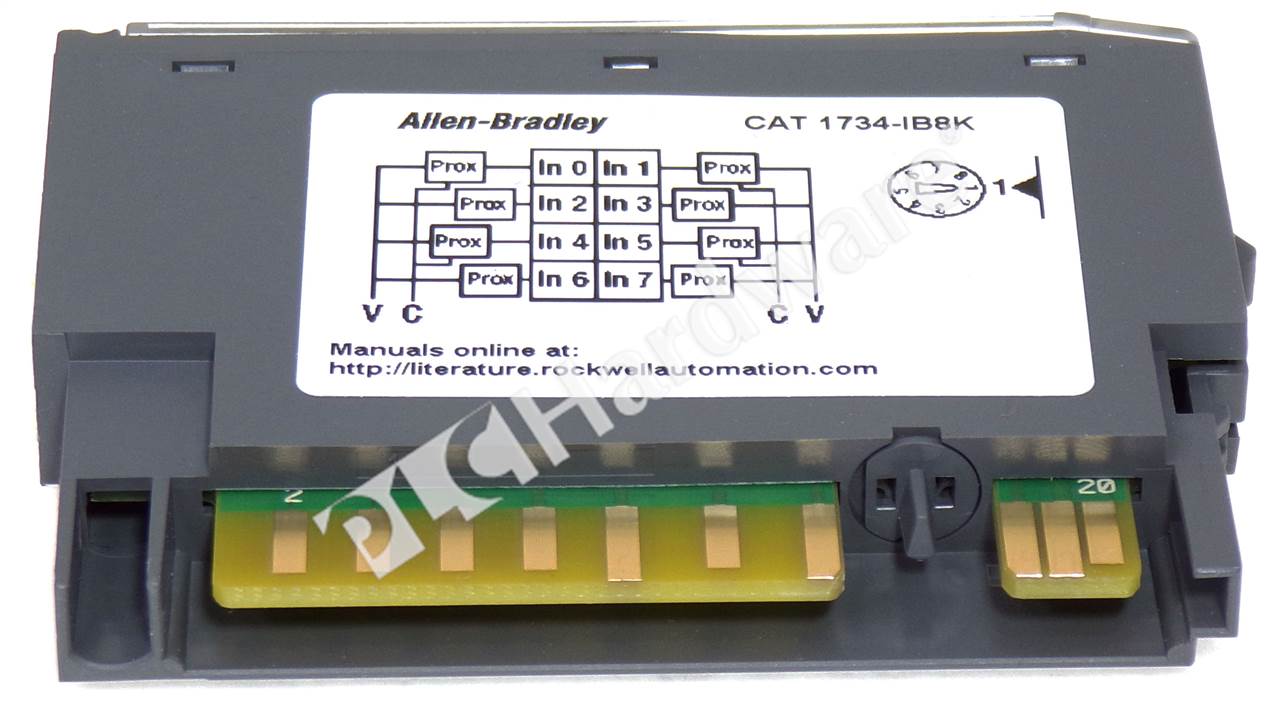

Allen-Bradley 1734-IB8K Digital Input Module 24V 8-Ch Sink Ser D

Mfr. Part Number:	1734-IB8K/D

Manufacturer:	Allen-Bradley / Rockwell Automation

Description:	Allen-Bradley 1734-IB8K POINT Digital DC Input Module 24V DC 8Ch Sink, Series D

Full Description:	Allen Bradley 1734-IB8K POINT Digital DC Input Module 24V DC 8 Channel Sink. 8 Sink Inputs 24V DC (10VDC - 28.8VDC); Input Delay Time, On to Off: 0.5 ms hardware + (0…65 ms selectable); On-State Current Min/Max: 2 mA/5 mA; Maximum Off-State Current: 1.5 mA; PointBus Current: 75 mA; Maximum Power Dissipation: 1.6 W @ 28.8V DC; Terminal Base Units: 1734-TB or 1734-TBS. The 1734-IB8 8 input sink input module installs in mounting bases that mount on a DIN rail. All wiring is made to a removable terminal block mounted on the mounting base, Conformally Coated, Series D

UPC / GTIN:	00889508698632

Status:	Current Product

Inventory & Prices

PLCH is Not Authorized Distributor of this product

Condition:

SOP (Surplus Open Pre-owned)

Warranty:

One Year PLCH Warranty.

Manufacturer's Warranty & Support DO NOT apply.

Availability:

4 in stock

Shipping Date:

Same working day, by 6 pm ET

Estimated Value:

Your Price:

$135.00

Quantity:
