Name: 1784-PM16SE/A
Brand: Allen-Bradley
SKU: 1784PM16SEA
Price: 2794.00 USD
Availability: OutOfStock

Rockwell Automation > PLC & HMI > I/O Products > PLC-5 > 1784-PM16SE/A

Overview

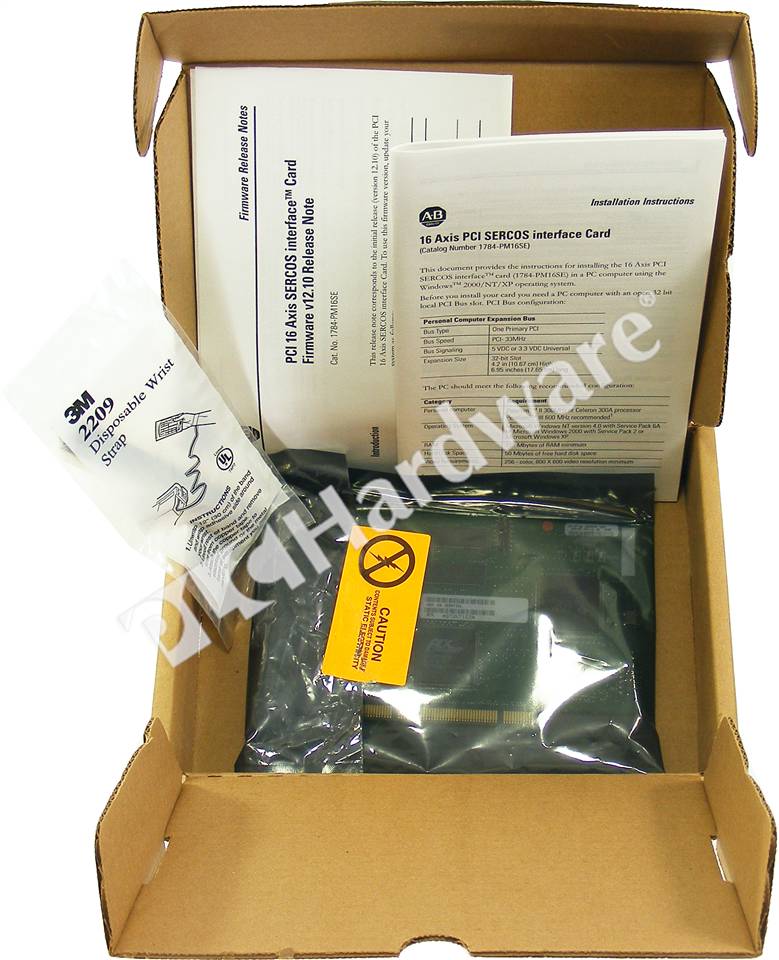

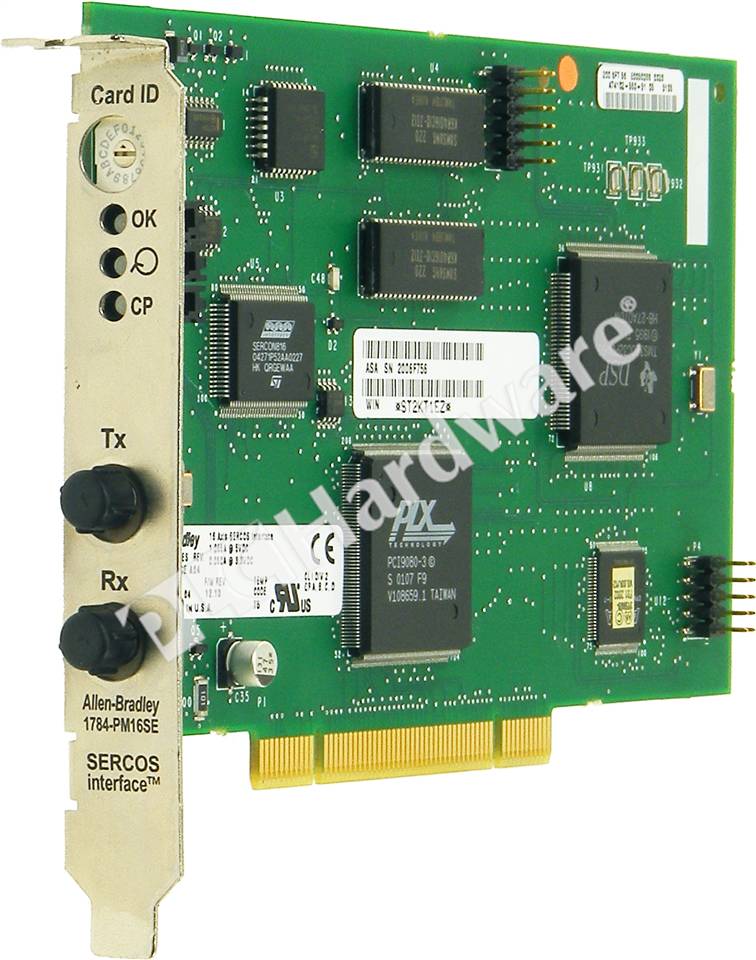

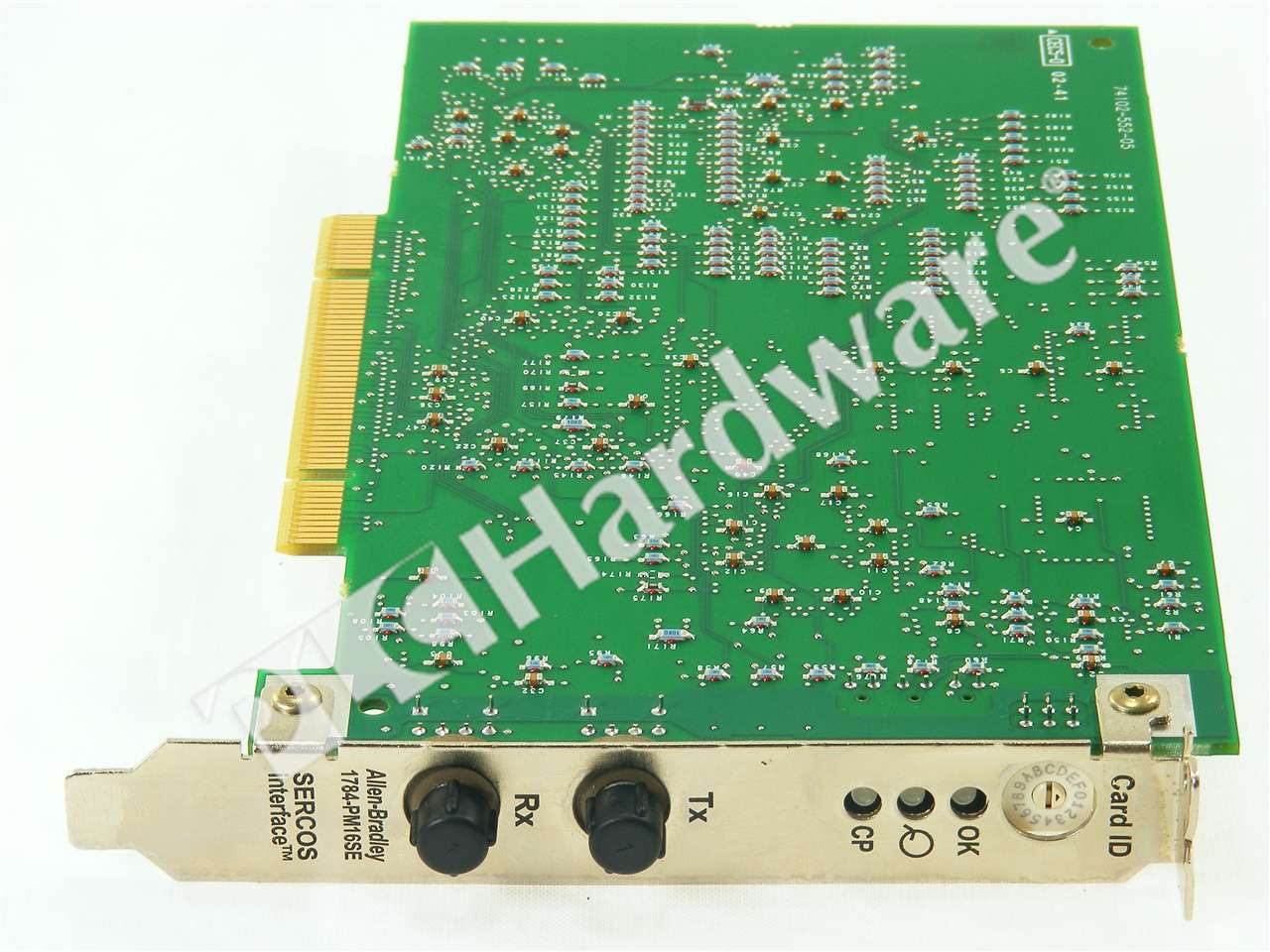

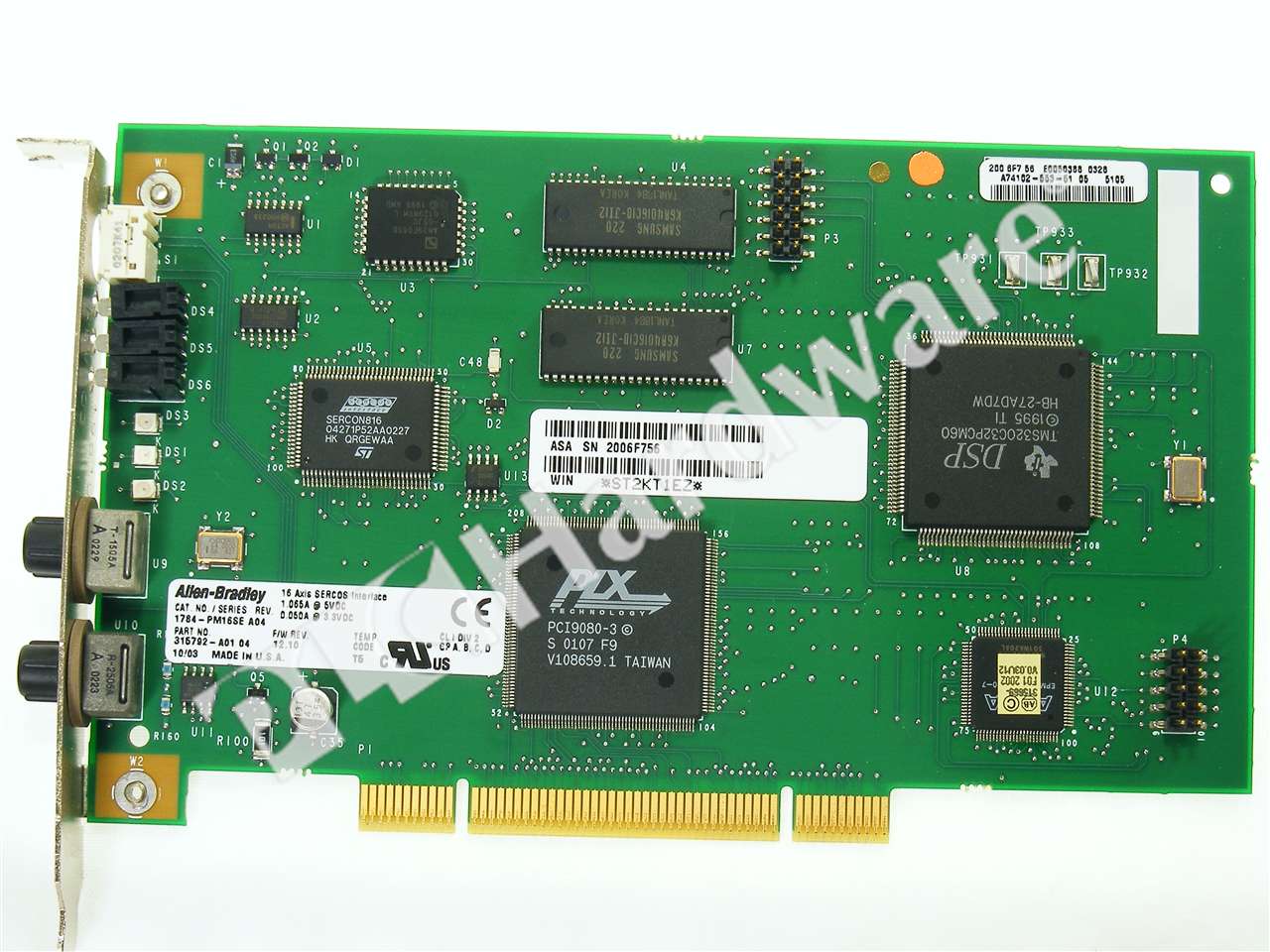

Allen-Bradley 1784-PM16SE SoftLogix 16-axis SERCOS interface PCI

Mfr. Part Number:	1784-PM16SE/A

Manufacturer:	Allen-Bradley / Rockwell Automation

Description:	Allen-Bradley 1784-PM16SE SoftLogix 16-Axis SERCOS PCI Card, Series A

Full Description:	Allen-Bradley 1784-PM16SE SoftLogix 16-Axis SERCOS PCI Interface Card; Provides a link between the SoftLogix platform and intelligent, Servo Drives. The SERCOS Interface Module uses a Single Digital Fiber Optic Link, which eliminates up to 18 discrete wires per axis. Detailed drive status information can be sent from drive to controller and from controller to drive, Series A

Status:	Current Product

Inventory & Prices

PLCH is Not Authorized Distributor of this product

Condition:

SOP (Surplus Open Pre-owned)

Warranty:

One Year PLCH Warranty.

Manufacturer's Warranty & Support DO NOT apply.

Availability:

0 in stock

0 available for pre-order

Shipping Date:

Estimated Value:

Your Price:

$2,794.00

Quantity:


Disclaimer

PLC Hardware (PLCH) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens or any other Manufacturers. PLCH is NOT Authorized Dealer of this product. The product may be of older version, date codes or design than that available from authorized dealers. As PLCH is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. PLCH sells pre-owned SURPLUS and USED equipment ONLY and DOES NOT sell SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining a proper license from the manufacturer. PLCH makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. PLCH also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from Original Manufacturer, its distributors, or any other source. PLCH also makes no representations as to your right to install any such software or firmware on the product. PLCH will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that PLCH DOES NOT provide any software, firmware, operating system or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance and upgrades are subject to applicable manufacturer's Licensing Agreement or similar document.

Specs & Technical Data

Specifications:	(16) Axes per Module (max); (1) module (16 axes) per SoftLogix Controller (max); Power Dissipation: 7.5 W; Current Capacity: 0.050 A @ 3.3V; Backplane Current: 1.065A @ 5V; SERCOS Data Rate: 4 Mb/s or 8 Mb/s. Compatible with the RSLogix 5000 motion instructions set & axis configuration utilities. The motion instructions provide a wide range of motion capability (point-point positioning, gearing, position & time-based camming, multiaxis linear/circular motion, etc).

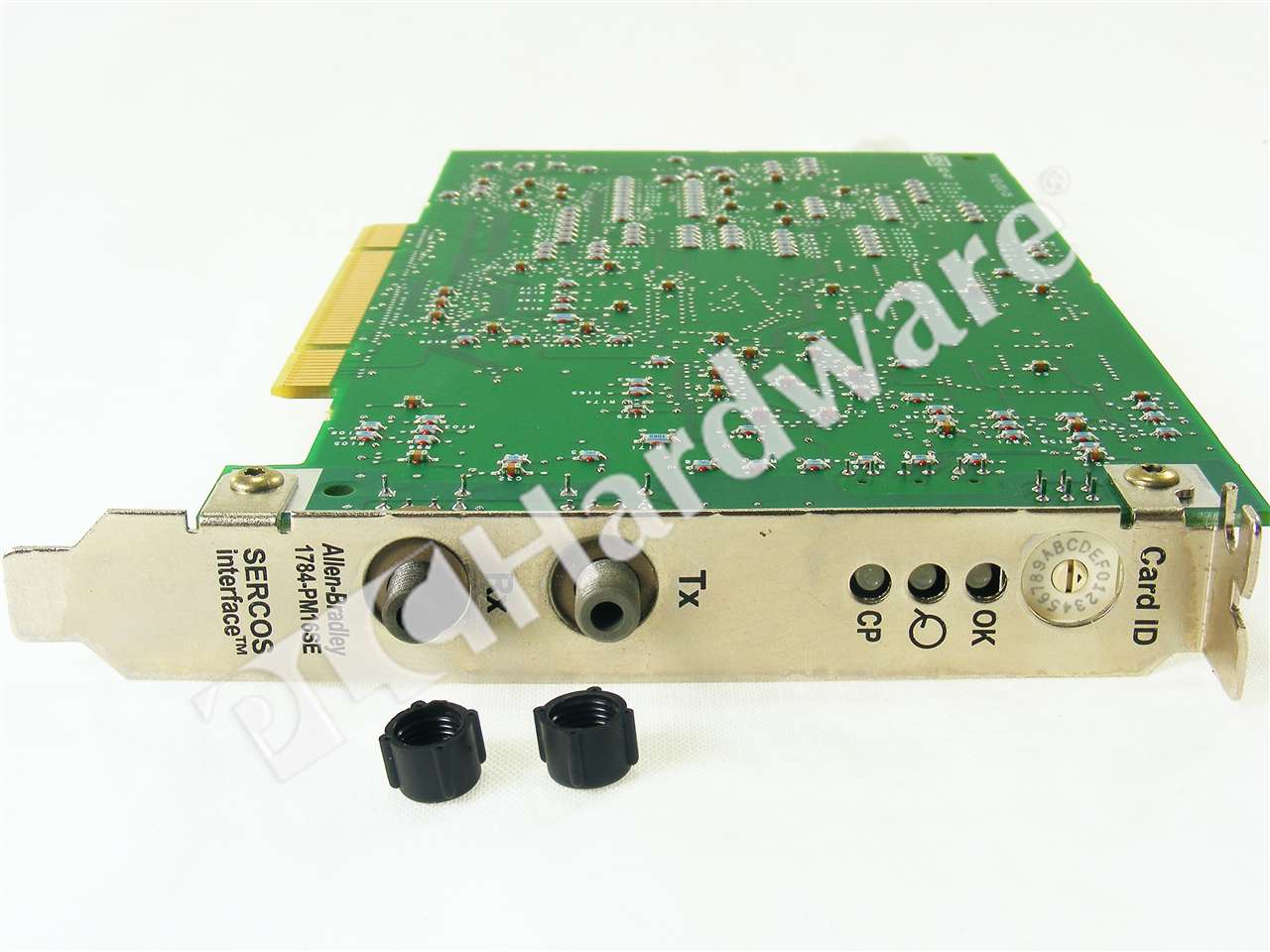

Miscellaneous:	The SERCOS interface module can connect to these servo drives: 2094 Kinetix 6000 servo drive, 2098 Ultra3000 SERCOS servo drive, 1394C SERCOS drive, 8720MC spindle. Available Plastic Fiber-optic Cables: 2090-SCEPx-x (no jacket), 2090-SCVPx-x (standard jacket), 2090-SCNPx-x (nylon jacket). Available Glass Fiber-optic Cables: 2090-SCVGx-x. Both the transmitter and receiver connections use a F-SMA standard plug that conforms to the F-SMA screw type connector.
