OverviewAllen-Bradley 1794-IRT8 Flex Analog Input Module 8-In RTD/TC, B
Mfr. Part Number:

1794-IRT8/A

Manufacturer: Allen-Bradley / Rockwell Automation
Description: Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B
Full Description: Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module, Non-Isolated, 8 Input Channels, Thermocouple/RTD/Mv/Strain Gauge, Series B
UPC / GTIN: 10612598180223
Status: Current Product
Inventory & Prices
Condition:

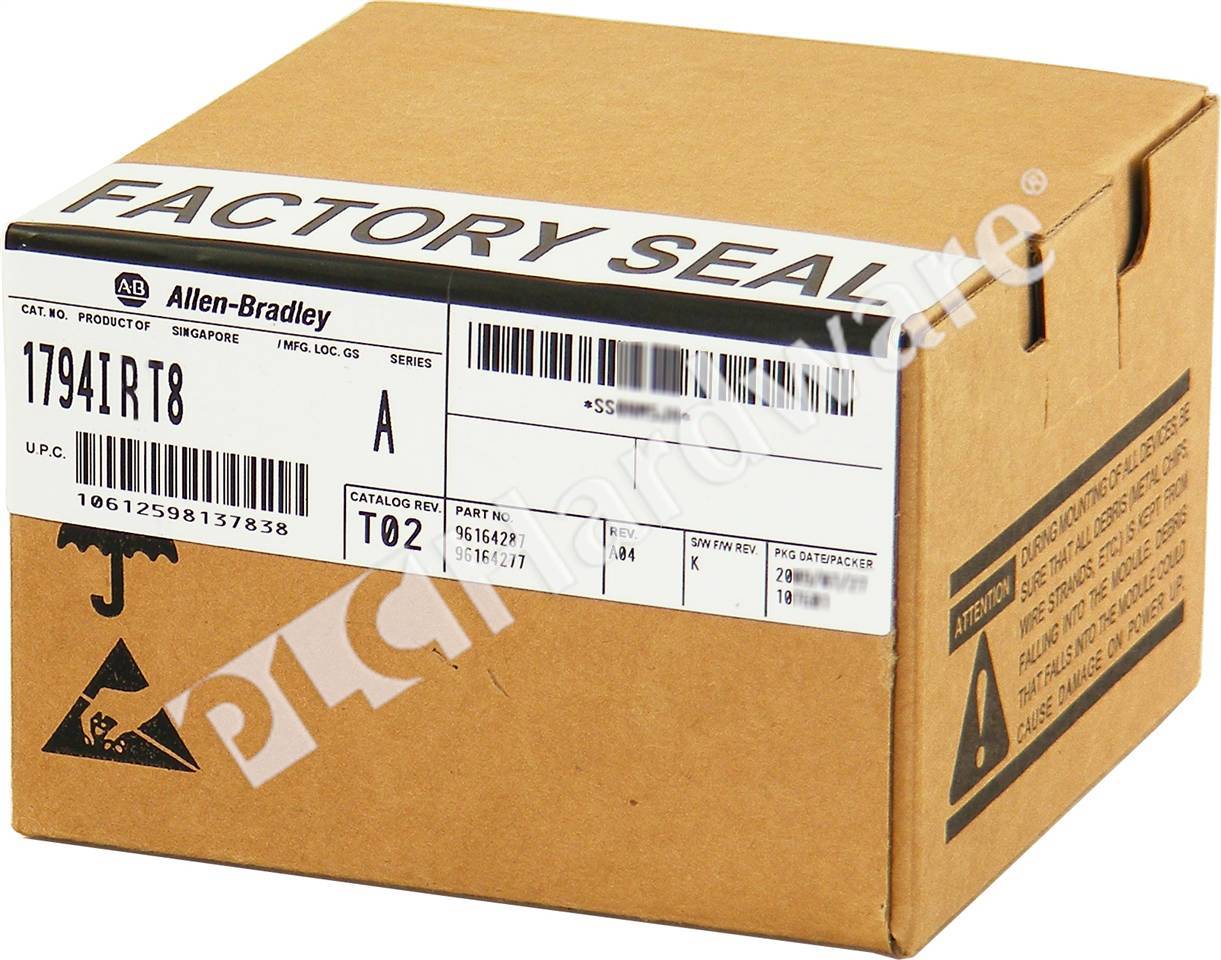

NFS (New Factory Sealed)

Warranty: 30 Days Replacement Warranty
Availability:
0 in stock 0 available for pre-order
Shipping Date:
 -  -
Retail Price: $1,800.00
Your Price: $1,401.00
Quantity:


1794-IRT8/A
Similar Parts Mfr Cond Description Retail Price Disc Qty
1794-IRT8/A RA UPP Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, A $1,800.00 $387.00 -78% 7 buyit
1794-IRT8/B RA NFO Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B $1,800.00 $717.00 -60% 1 buyit
1794-IRT8/B RA NFS Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B $1,800.00 $868.00 -52% 2 buyit
1794-IRT8/B RA NSO Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B $1,800.00 $822.00 -54% 2 buyit
1794-IRT8/B RA NSS Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B $1,800.00 $992.00 -45% 1 buyit
1794-IRT8/B RA UPP Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module 8-In Thermocouple/RTD/Mv, B $1,800.00 $461.00 -74% 1 buyit
1794-IRT8XT/B RA NFO Allen-Bradley 1794-IRT8XT FLEX I/O XT Analog Input 8-Ch Thermocouple/RTD/mV, B $2,240.00 $1,353.00 -40% 1 buyit
Specs & Technical Data
Specifications: Allen-Bradley 1794-IRT8 Flex I/O Analog Input Module, Number of Inputs: 8 RTD, Thermocouple, Millivolt, Strain Gauge; Input Signal Range: -40…+100 mV DC for thermocouples, 0…325 mV DC for RTDs, 0…500 Ohm for resistance range; Input Resolution: 14 bits; External DC Supply Current, Nom.: 85 mA @ 24V DC; Power Dissipation, Max.: 3 W @ 31.2V DC; Common mode rejection: -80 db @ 5V peak-to-peak; Indicators: 1 green power status indicator, 8 red open input indicators; Terminal Base Unit: 1794-TB3G, 1794-TB3GS.
Miscellaneous: Allen-Bradley 1794-IRT8 is a high-speed, high-accuracy temperature/mV measuring module that accepts thermocouple inputs, 2-, 3-, and 4-wire RTD inputs, and mV source inputs. The 1794-IRT8 also offers wire-off, over-range, and under-range detection. The 1794-IRT8 module accepts up to 8 thermocouple or RTD inputs. The cold-junction compensators (1794-CJC2) should be used in thermocouple mode. Two cold-junction compensators are shipped with any new 1794-IRT8 module.
