Name: 1794-TBNF/A
Brand: Rockwell Automation
Price: 278.00 USD
Availability: OutOfStock

Overview

Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Ser A

Mfr. Part Number:	1794-TBNF/A

Manufacturer:	Allen-Bradley / Rockwell Automation

Description:	Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp, Series A

Full Description:	Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp with fuse holders for 5x20 mm fuses on each of the eight even-numbered I/O terminals (0 through 14 - row B), Series A

UPC / GTIN:	10612598137890

Status:	Current Product

Inventory & Prices

Condition:

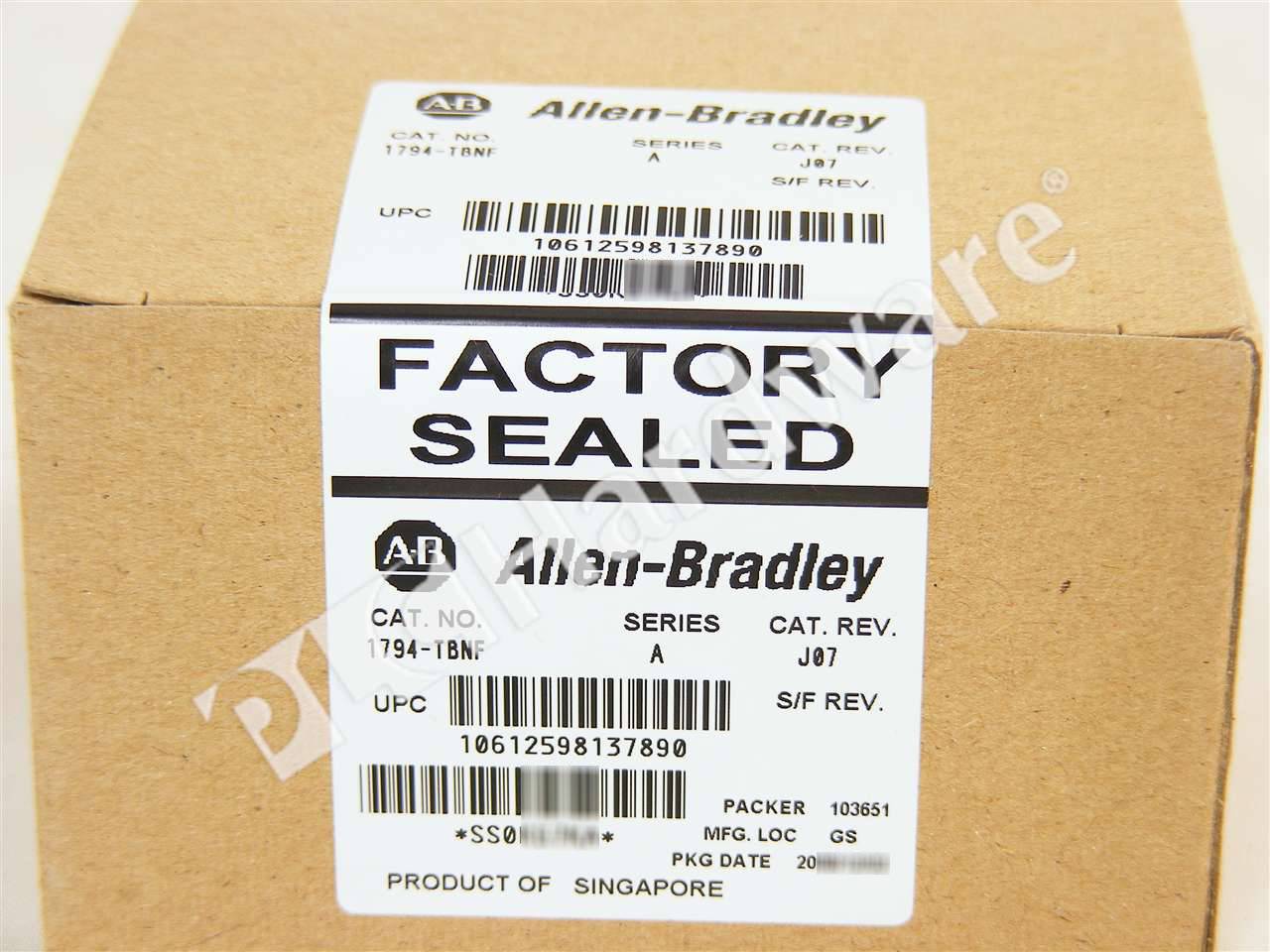

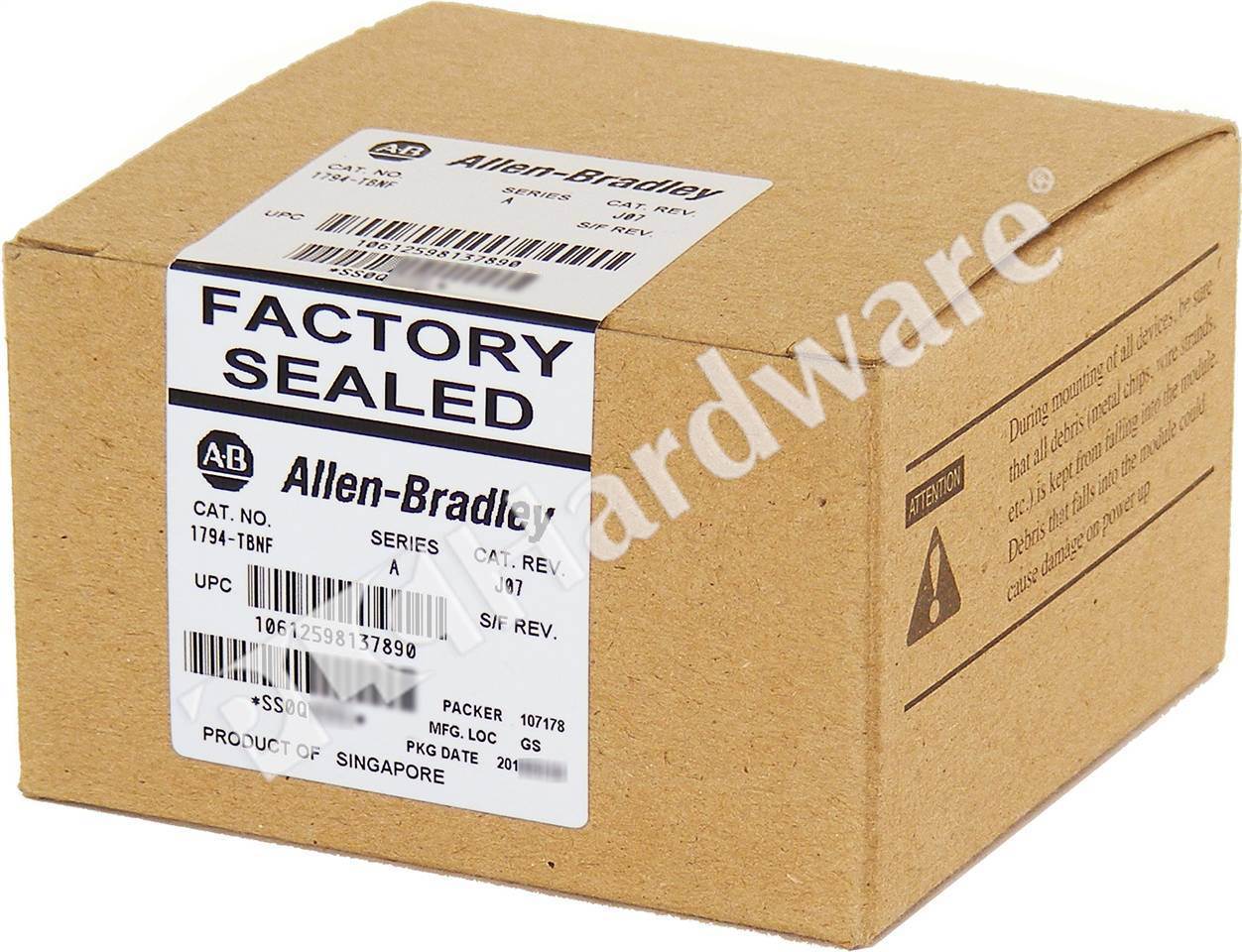

NSS (New Surplus Sealed)

Warranty:

Availability:

0 in stock

0 available for pre-order

Shipping Date:

Retail Price:

$215.00

Your Price:

$278.00

Quantity:


Similar Parts	Mfr	Cond	Description	Retail	Price	Disc	Qty

1794-TBNF/A	RA	UPP	Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base, Screw Clamp, Series A	$215.00	$86.00	-60%	11

Specs & Technical Data

Specifications:	Allen-Bradley 1794-TBNF FLEX I/O Terminal Base Unit, Termination Type: Screw-clamp, 2-Wire; Number of Terminals: 2 rows of 10; Wiring Connections: 16 Inputs/Outputs, 2 Commons, 2 +V Voltage; Voltage Rating: 264V AC/DC; Current capacity: 10A max; Isolation Voltage: Established by installed module; Enclosure Type: None (open-style); Terminal Screw Torque: 0.79-1.02 Nm (7-9 lb-in); Wire Size: 4 mm² (12 AWG) stranded copper wire rated at 75 °C (167 °F ) or greater, 1.2 mm (3/64 in.) insulation max.

Miscellaneous:	Allen-Bradley 1794-TBNF FLEX I/O Fused NEMA Terminal Base provides eight 5 x 20 mm fuses (1.6A 250VAC), screw terminals, plus a cover for I/O wiring, shipped with fuses for the 1794-OA8 module; can be used to fuse the 1794-OM8 and -OW8 modules with a replacement fuse. The 1794-TBNF units plug together to form the backplane. The 1794-TBNF terminal bases allow Removal & Insertion of failed modules Under Power (RIUP).
